Building construction and superintendence, by F.E. Kidder ... (1896)
Kidder, Frank E. (Frank Eugene), 1859-1905 · New York, W.T. Comstock · leaf 174

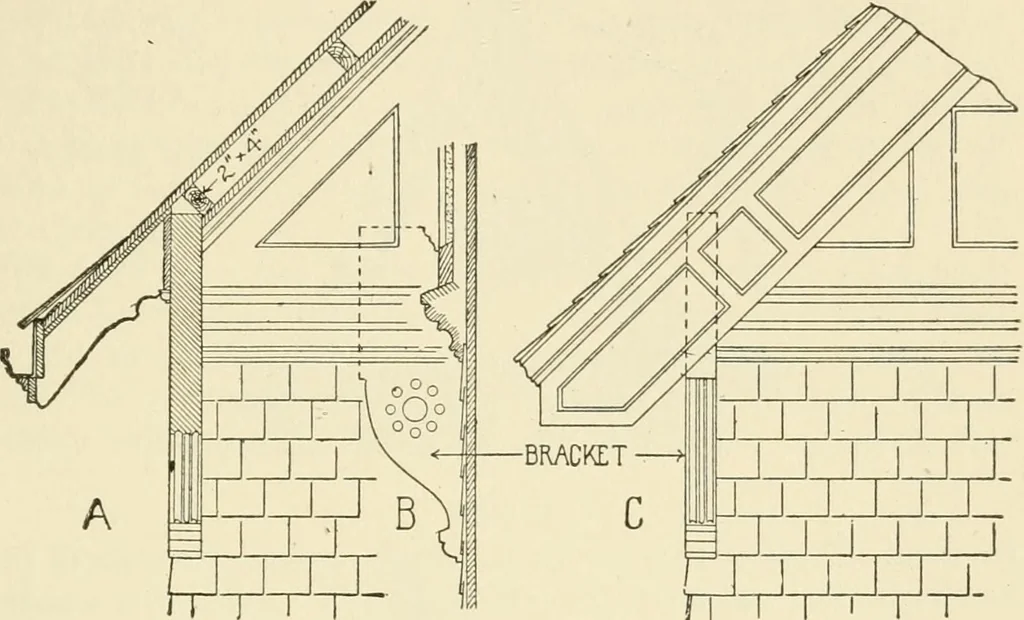

nned to the outer rafters. 119. Verge Boards.— Verge boards (sometimes calledbarge boards) are almost inva-riably used on frame buildingsof the English Gothic or Tu-dor styles of architecture, andthey may be used with almostany style of finish except theclassical. They are often highly orna-mented… … 1 rii 11rrriTT LiUZLJII Fig 152. verge boards are generally, although not always, supported at theirlower end by wooden brackets, which also serve to stop the gable mould-ings, or belt courses, as shown in Figs. 150 and 152, the bracketbeing used more to stop the gable finish than for an actual…
