Modern carpentry and joinery : being a compilation of the very best things and most modern and practical methods known in the arts of carpentry and joinery (1910)
Hodgson, Frederick Thomas, 1836- · Chicago : F. J. Drake & Co. · leaf 249

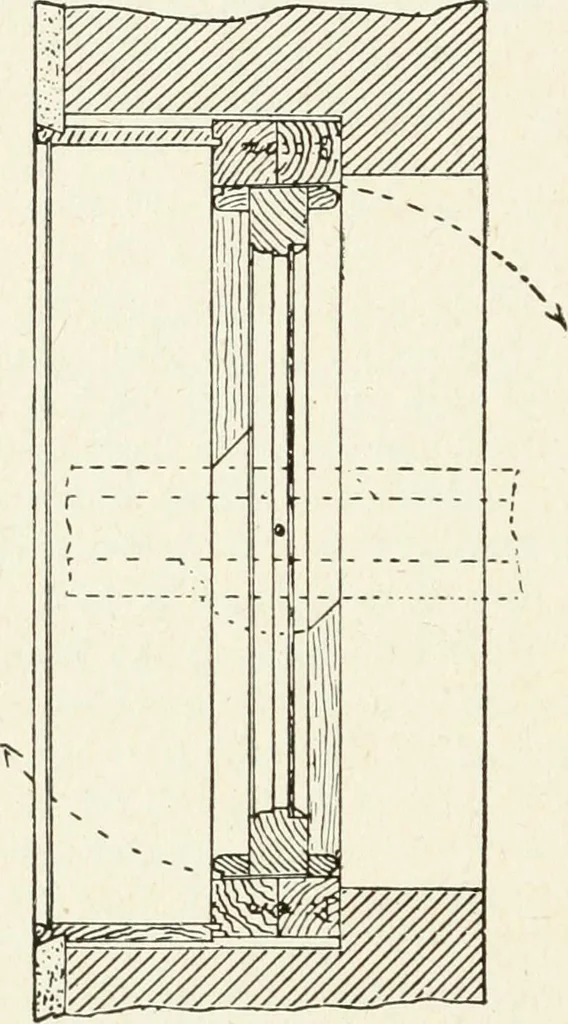

es indicatingthe beads. Next replace the beads and transfer themarks to them, cutting them off the mitre block (re-member that the mark is the longest point of the mitre).The upper portions outside and the lower inside arefixed to the frame, and these are shaded in the draw-ings. The remainder of… … Fig. 125. 124). In this ease the sash must be drawn out andrested upon the pin, then the bead laid on it andmarked as before, the intersection a giving the mitrepoint. PRACTICAL SOLUTIONS 247 A BuUs-Eye Frame with a pivoted sash is shown inFigs. 125 and 126 and enlarged detail of the joint.…
Carpentry
