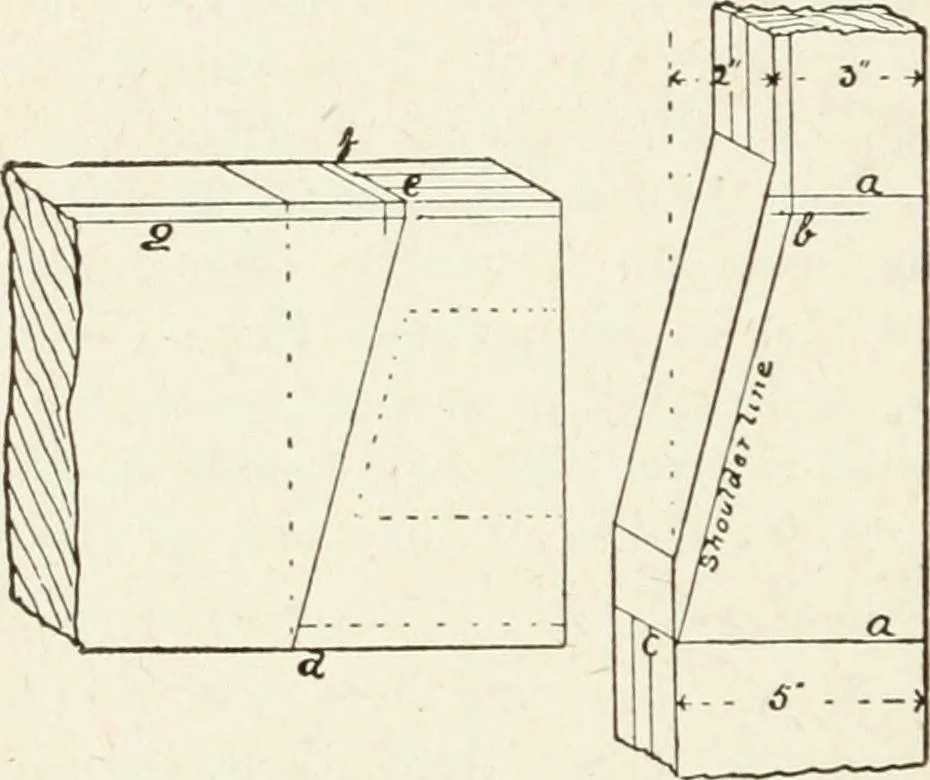

rt, because if the chisel is at all out of up-right when the waste is cut away, the mortise will be 270 MODERN CARPENTRY found beyond the sight line, which will be a seriousdefect. To Set Out the bevelled shoulders of the stile andrail. Taking the stile first, having as described in thefirst method… … Stile and Rail of a DiminishedStile Door.Method of Obtaining Shoulder Lines.Fig. 156%. line representing the depth of sticking of the rail onthe face side, and the rebate on the back side, as at b.Next run gauge lines down on each side of the dimin-ished part as working lines of rebate and…
