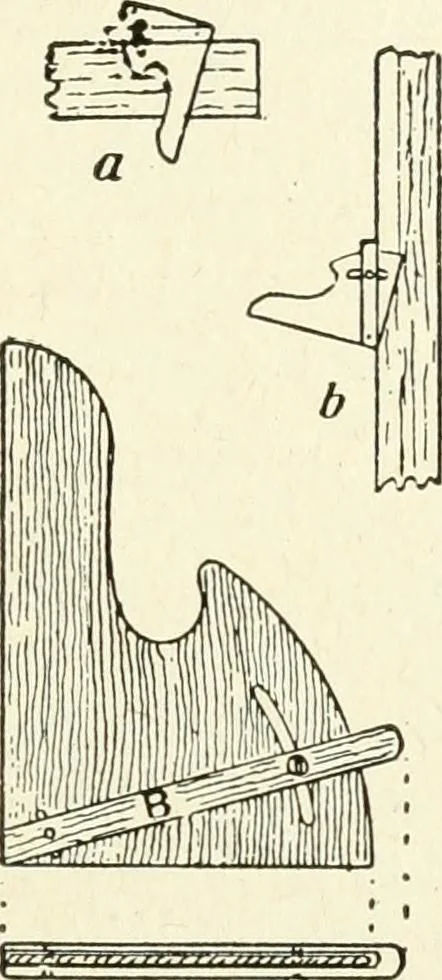

/i Pair of Vestibule DooRi (Eighteenth Century Slyle^Fig. 157. PRACTICAL SOLUTIONS 273 square is also made a concentric curve to permit theeasy passage of the end of the bar. The theory uponwhich the action of the tool is based is that the anglebetween the parallel bar B and either of the edges… … An Adjustable Squarefor Bevel Shoulders. Fig. 1571/2. desired angle between the edges of a rail and stile. Itsapplication is shown in the upper part of the figure, abeing the rail, b the stile. Either a rail or stile is firstset out as described above, the edge of the square setto the shoulder…
