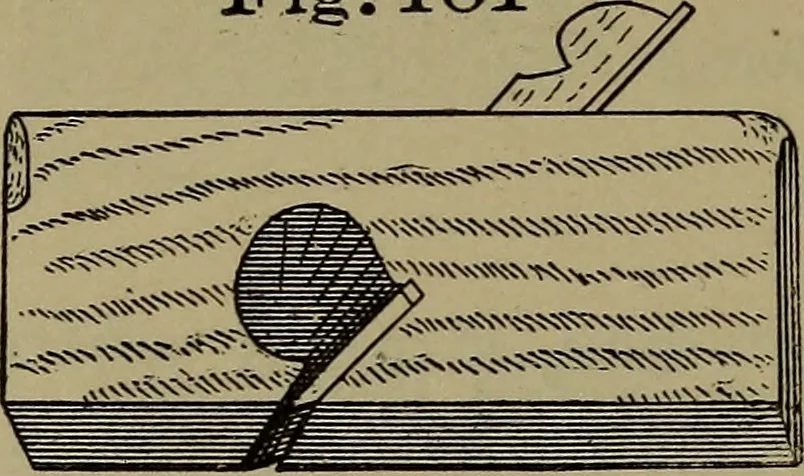

ron iswide enough to extend beyond the sides of the stock, as shown 50 BENCH WORK IN WOOD. Fig. loi by Fig. loi. Rabbeting-planes are designed for use ininterior angles. The oblique position of the iron produces ashearing cut which promotes smooth-ness in action. The shaving of the… … 82. Matching-Planes are used to form a tongue and agroove, as shown respectively by a and b, Fig. 102. Wooden matching-planes. Fig. 102, aresold in pairs, one plane being fitted with asingle cutting edge, to form the groove, theother with a double cutting edge, to form thetongue. Both are guided by…
