Modern carpentry and joinery : being a compilation of the very best things and most modern and practical methods known in the arts of carpentry and joinery (1910)
Hodgson, Frederick Thomas, 1836- · Chicago : F. J. Drake & Co. · leaf 284

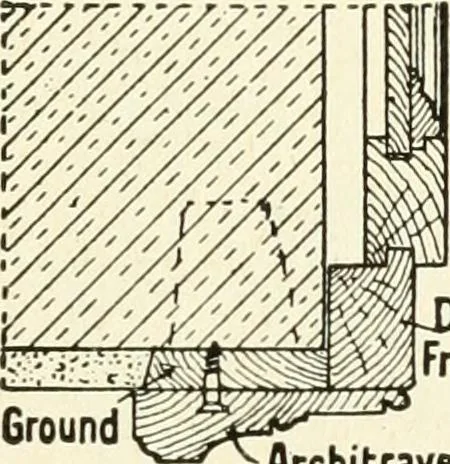

Fig. 168. PRACTICAL SOLUTIONS 281 finished surfaces, the door frames and architraves arefixed by screws. The fixing of the architraves around such a door-way affords a good example of Fixing by Secret Screw-ing. The mitres of the architraves are first glued andsecured with dovetail keys or slip… … 4J)oorFrame Architrave Fig. 169. BacKS*^^ of l^rchi trax* Sere* Hole t of the architrave, exactly opposite the screw heads,small holes—equal to the size of the shanks of thescrews—are bored; and about three-quarters of aninch below these, larger holes—of size equal to theheads of the screws—are…
Carpentry
