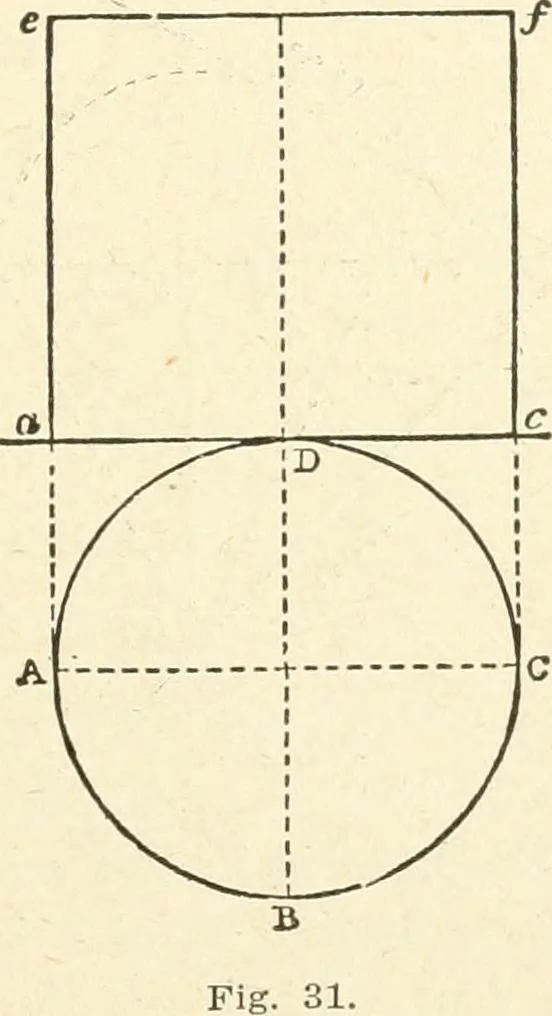

Fig. 305i. SOLID GEOMETRY 57 4. THE CYLINDER, CONE, AND SPHERE. XXIII. The horizontal projection of the cylinder,the axis of which is perpendicular to the horizontalplane, being given to find the vertical projection. Let the circle ABCD (Fig. 31) be the base of thecylinder, and also its horizontal… … a c, and produce them to the height of the cylinder—say, for example, a e, c f. Draw e f parallel to a c, andthe rectangle a e f c is the vertical projection required.XXIV. Given the traces of an oblique plane, to de-termine the inclination of the plane to both the H. P.and the V. P. 58 MODERN…
