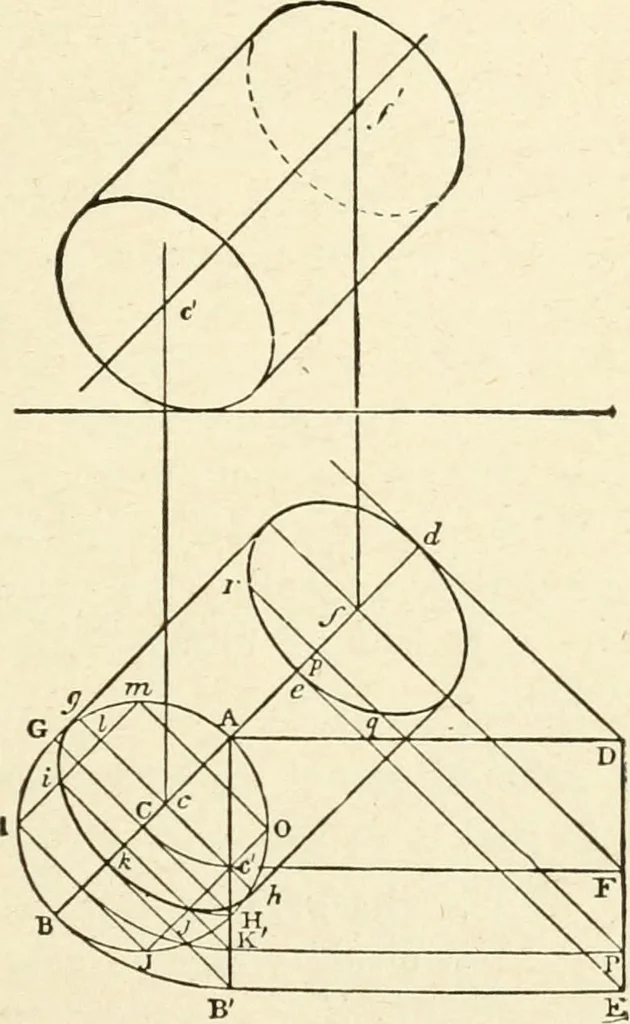

and alsothe angles which the base makes with the planesof projection, to construct the projections of the cyl-inder. Let the circle AGBH (Fig. 33) be the given base,andlet each of the given angles be 45°. Draw the diameterAB, making an angle of 45° with the ground line or ver- SOLID GEOMETRY 59… … Fig. 33. to the length of the cylinder; the rectangle A E isthe vertical projection of the cylinder parallel to thevertical plane and inclined to the horizontal, planeA B in an angle of 45°, Now prolong indefinitelythe diameter B A, and this line will represent theprojection on the horizontal plane…
