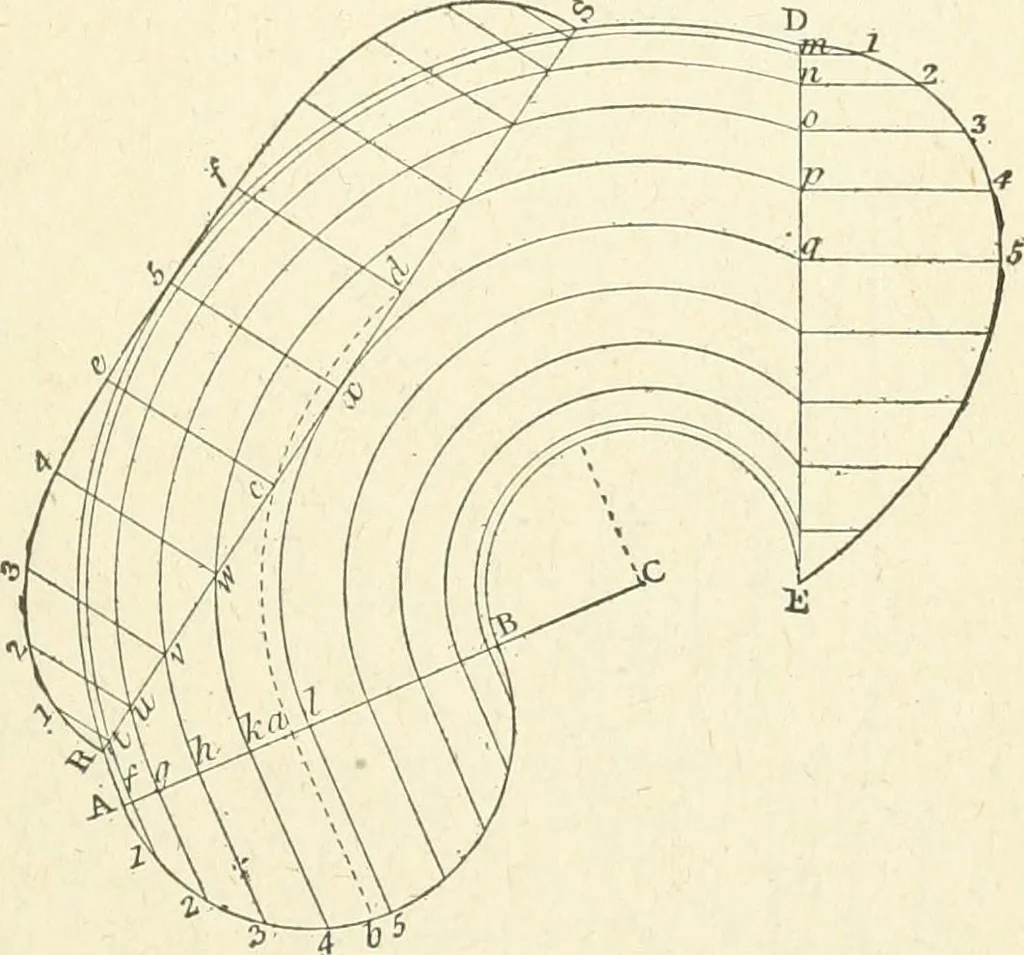

p;c.; then through the points 1, 2, 3, 4, &c., draw thecurve D 5 E, which is the section required. SOLID GEOMETRY 83 Again, let R S be the line of the required section;then from the points t, \i, v, w, c, x, cl, &c., where theconcentric circles cut this line, draw the lines t 1, u 2,V 3,… … Fig. 52. XLII. To describe the section of a solid of resolu-tion the generating curve of which is an ogee. Let ADB (Fig. 53) be half the plan or base of thesolid, A a b B the vertical section through its axis, andE F the line of section required. From G draw C 5perpendicular to E P, and bisecting…
