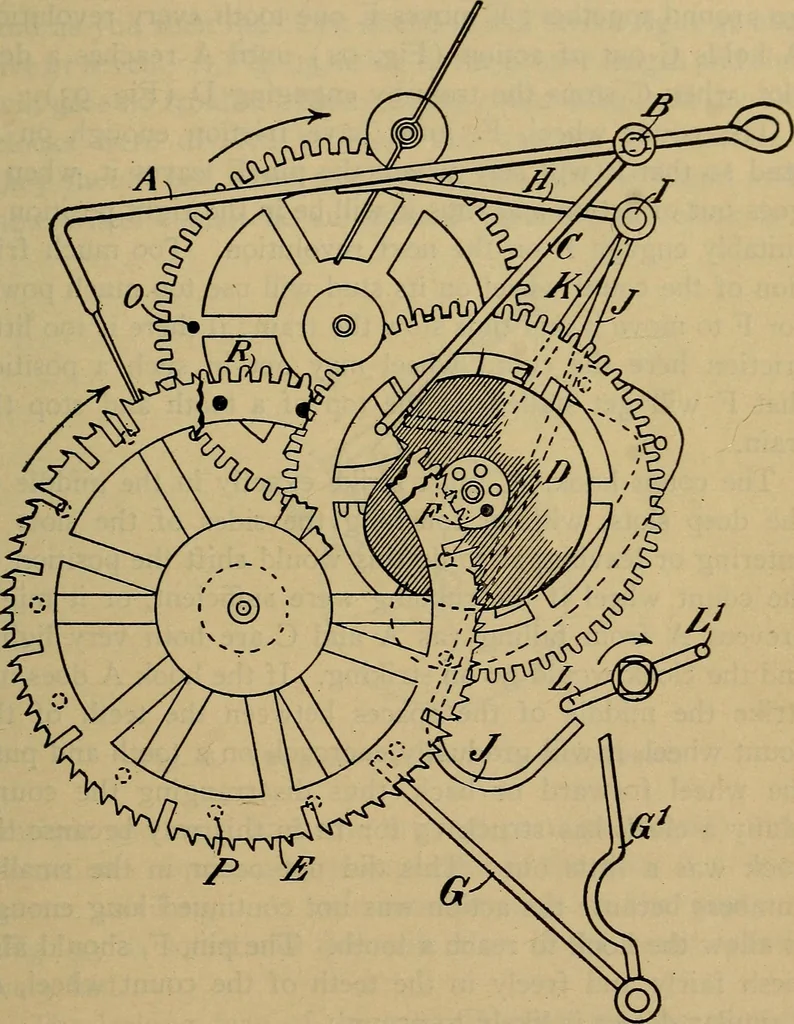

Fig. 93. Upper Portion of Striking Train Locked. THE MODERN CLOCK. 303 … Fig. 94. Striking Train Unlocked and Running. 3^4 illK IvIODEIlN CJ.OCK. the wheel one tooth for each revolution of D, so that Fforms a one-leaf pmion similar to that of a rack strikingtrain. Here we have our counting mechanism; F and Dgo around together; F moves E one tooth every revolution.A…
