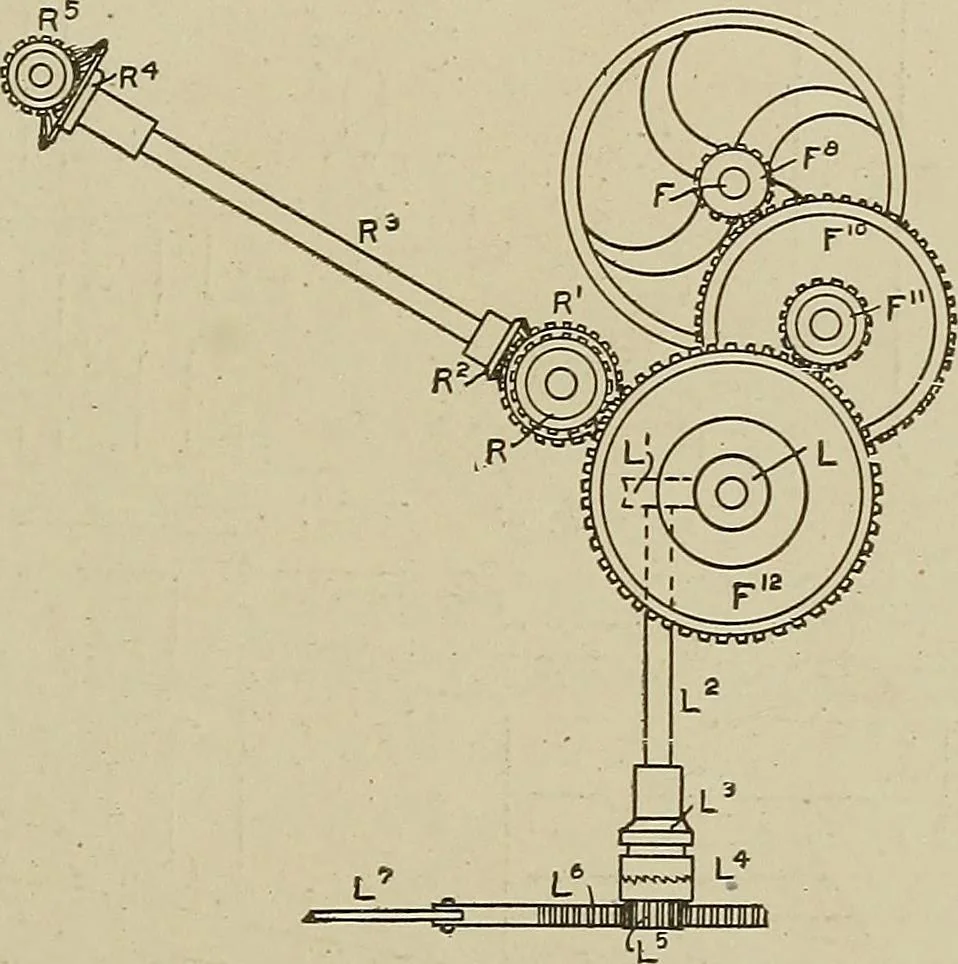

lled,is accomplished as follows: When the carriage reaches the end ofthe draw, a pin drops into a slot in a rod, which is connected, bymeans of rods and levers, to the rack L, Fig. 160. Simultaneouslywith the dropping of the pin into the slot the belt is sliipped fromthe tliird, a drawing-out… … Fig. 160. is fast to the shaft F, thus causing it to turn, and drives through F^,F^*, F^^ and F^^. On the shaft L to which F^^ is fastened is a wormwhich meshes with a gear L^ on the end of the upright shaft U.Sliding on a pin on the lower end of the shaft L^ is one half of a clutchL^, which meshes…
