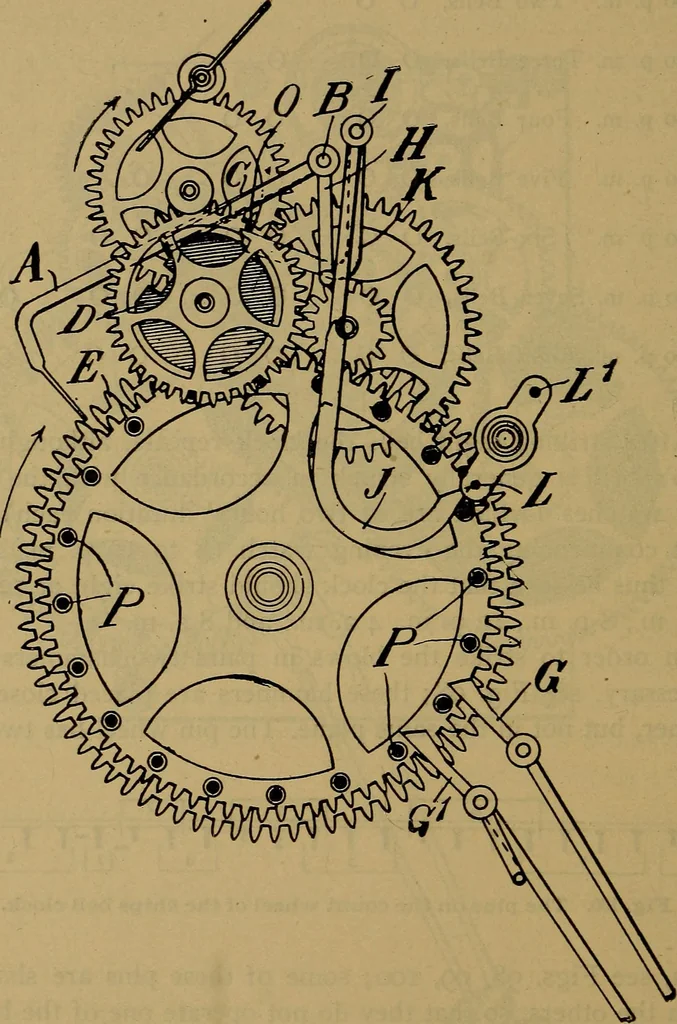

lJI Fig. 100. The pins on the count wheel of the ships bell clock. pins, see Figs. 98, 99, 100; some of these pins are shorterthan the others, so that they do not operate one of the ham-mer tails. These are shown graphically in Fig. 100; wherethe two oblong marks at figure i represent the tops of… … Fig. 99. Enlarged view of striking work, ships bell clock. TlIK MODERN CLOCK. 317 outer hammer tail will not De operated at all, thus givingbut one blow, or bell. At the next movement of the pinwheel, the outside hammer will be operated by the long pinand the inside hammer by the short pin, thus…
