The modern gas tractor, its construction, utility, operation and repair: a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction as well as practical application of tractors in the field (1919)
Pagé, Victor Wilfred, 1885-1947 · New York : Scientific American Pub. Co. · leaf 145

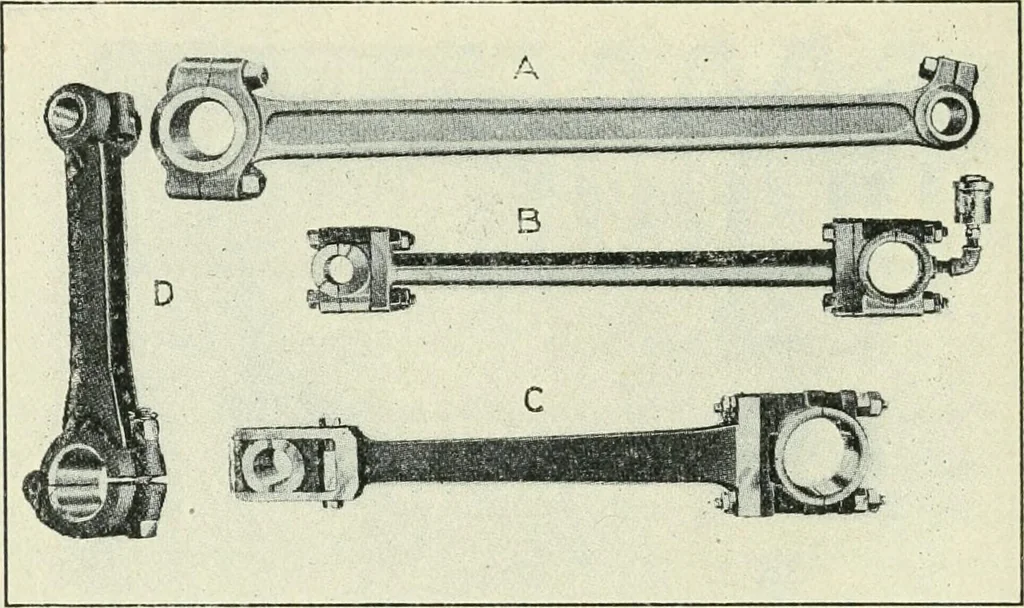

ends upon the type of engine in whichit is used. As a general rule connecting rods are more 142 The Moderx Gas Tractor than twice as long as the stroke of the piston. They areusually made of steel and either forged or formed from theslab. Sometimes they are made of high-tensile strengthbronze… … Fig. 47.—Types of Connecting Rods Used in Tractor Engines.A—Simple Marine Type Used in Long Stroke Motor.B—Built-up Marine Type With Adjustal^le Wrist Pin Box.C—Marine Type With Wrist Pin Bushing AdjustmentBy Wedge. D—Simple Hinged Lower Cap Type Usedin Vertical Cylinder Short Stroke Motor. are to…
Farm engines · Internal combustion engines
