Wright aircraft engines; complete instructions for their installation, operation and maintenance; (1921)
Wright Aeronautical Corporation, Cautley, John R., ed · Paterson, N.J., Wright aeronautical corporation · leaf 19

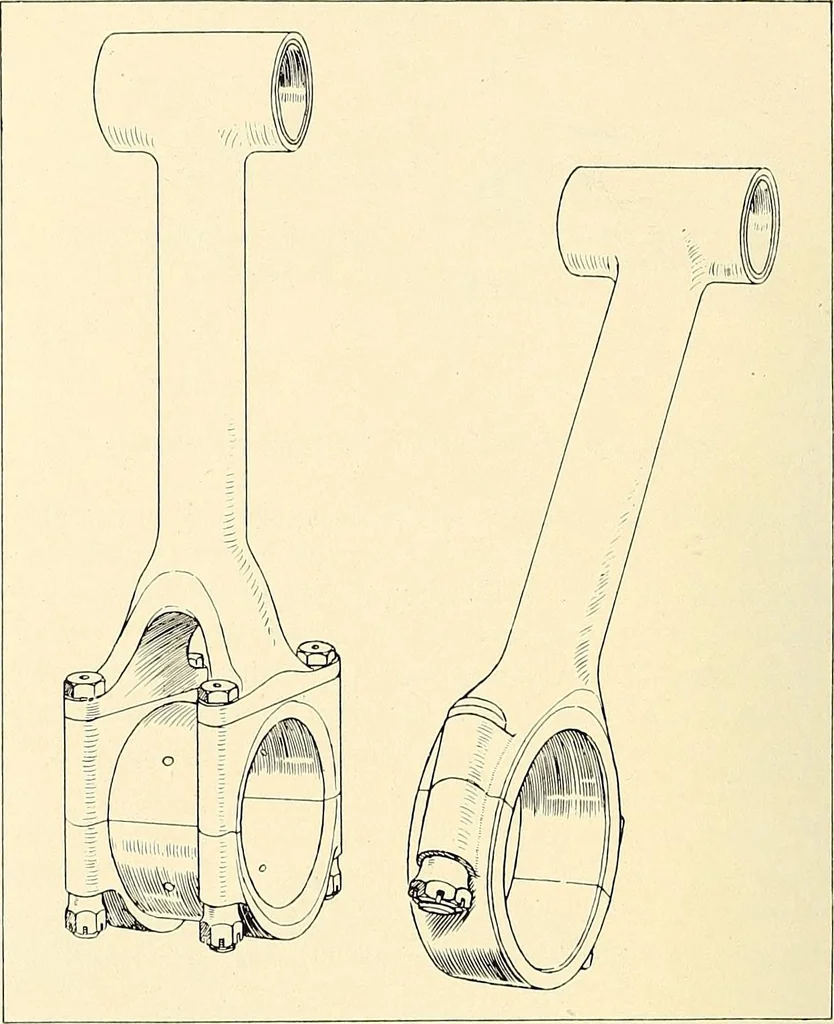

th. Both magnetos, with their drive shaft and gears aremade up in a unit and are demountable as such. The rearend of the crankcase has a circular, flanged opening pro-vided with a ring of studs, and the aluminum magnetobracket attaches thereto. There are three magneto gears:central in the bracket… … Inner and outer connecting rods on this shaft meshes with two others, one on each side,these being also mounted on ball bearings. The magnetos themselves are attached to the bracketby cap screws and a very simple and effective form ofcoupling is used. On the end of the armature shaft is asmall spur…
