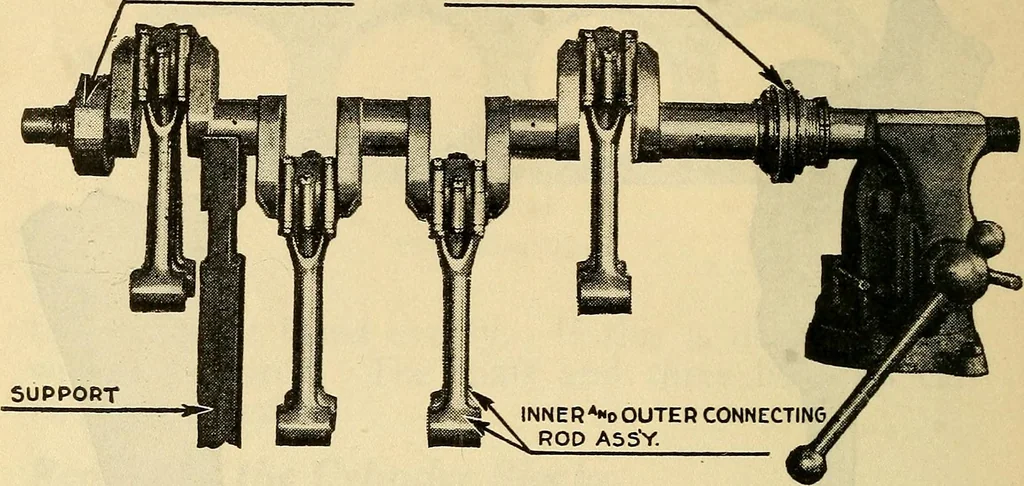

removed from the lowerhalf of the crankcase by removing the 13 nuts B-93which hold the oil pump cover plate 11916 in place. The water pump drive shaft No. 11758 can be re-moved immediately upon taking the oil pump assemblyfrom the crankcase. To disassemble the oil pressure pump remove the… … Plate 43Crankshaft can be supported in this manner for assembling connecting rods. The oil pressure pump gear 11755 can then be removedfrom the oil pressure pump body 11748. To disassemble the oil suction pumps remove theoil suction pump body 11747. The oil suction pumpgear 11754 can be removed the…
