The modern gas tractor, its construction, utility, operation and repair: a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction as well as practical application of tractors in the field (1919)
Pagé, Victor Wilfred, 1885-1947 · New York : Scientific American Pub. Co. · leaf 256

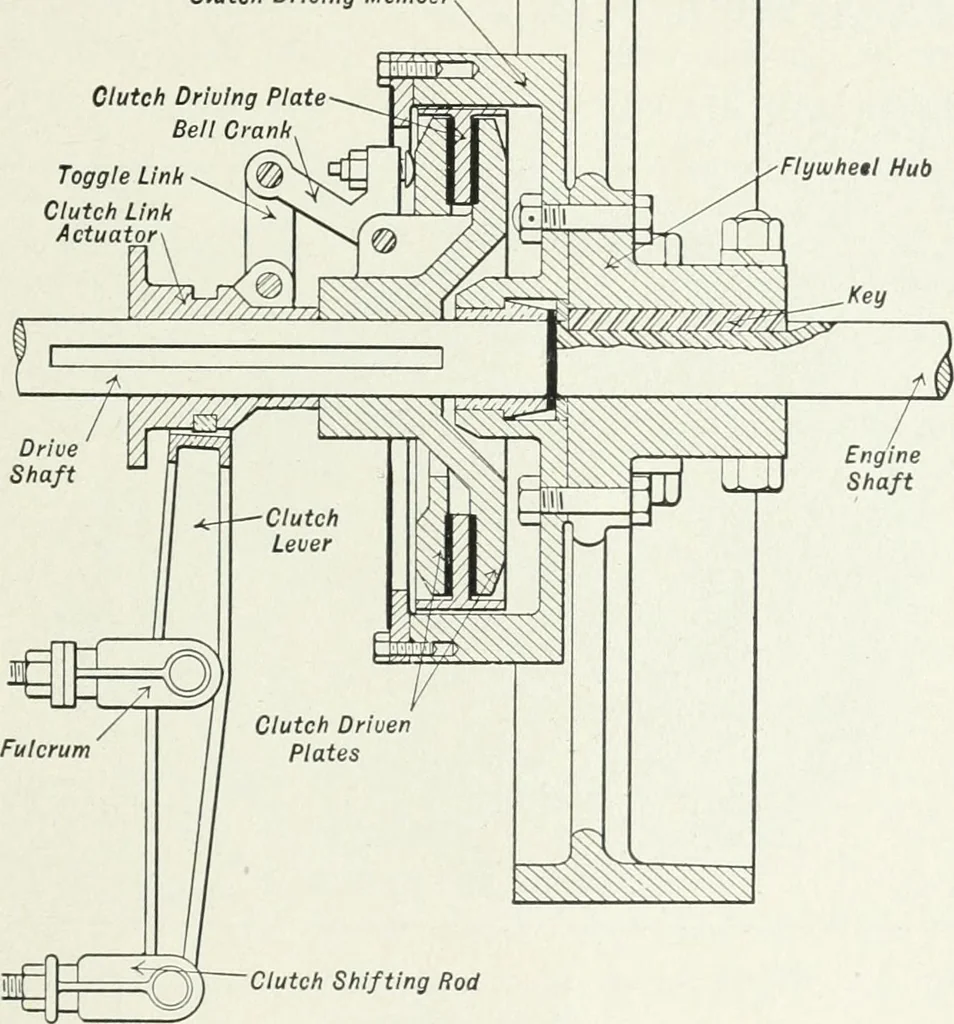

Clutch Driving Member. Clutch Driving Plate ~Bell Cranh, Toggle Link - Clutch LinkActuator\ ^Flywheel Rim Flywhetl Hub … Fig. 9f3.—Sectional View of blaster Clutch Used on HoltTractors. the clutch case. The engine shaft and drive shaft areindependent when the clutch is disengaged. That is tosay, the drive shaft may remain stationary while the 252 The Modern Gas Tractor fly-wheel revclves. Attached to the driving…
Farm engines · Internal combustion engines
