Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice (1921)

Ritchey, James, Monroe, Walter W. (Walter William), b. 1869 · Chicago, American technical society · leaf 203

An illustration from Pattern making; a practical treatise for the pattern maker on wood-working and wood turning, tools and equipment, construction of simple and complicated patterns, modern molding machines and molding practice, 1921, leaf 203

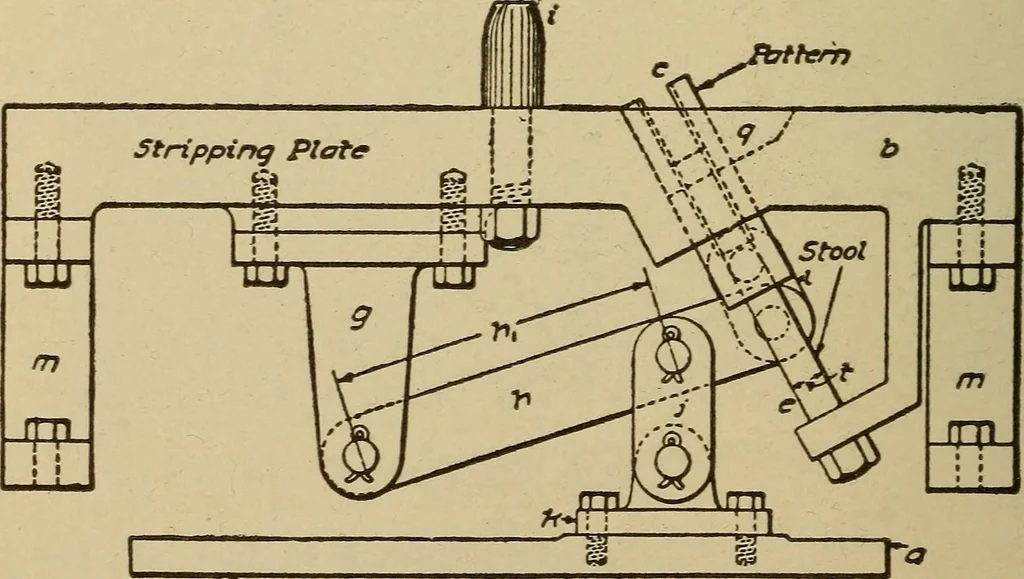

.Fig. 311. Drag Machine with Pattern in Position to Make Mold1^ … ^^Dra*y^Plate Fig. 312. End Elevation of Pattern Equipment for ReJd Hand-RammedStripping-Plate Machine PATTERN MAKING 185 the machine-molded castings, the castings and the hard-woodbearings are literally thrown together. Molding Machine, In Fig. 310 is illustrated the drag machine,and in Fig. 311,…
