Machine drawing; a text and problem book for technical students and draftsmen (1921)
Svensen, Carl L. (Carl Lars), 1884- · New York, D. Van Nostrand company · leaf 218

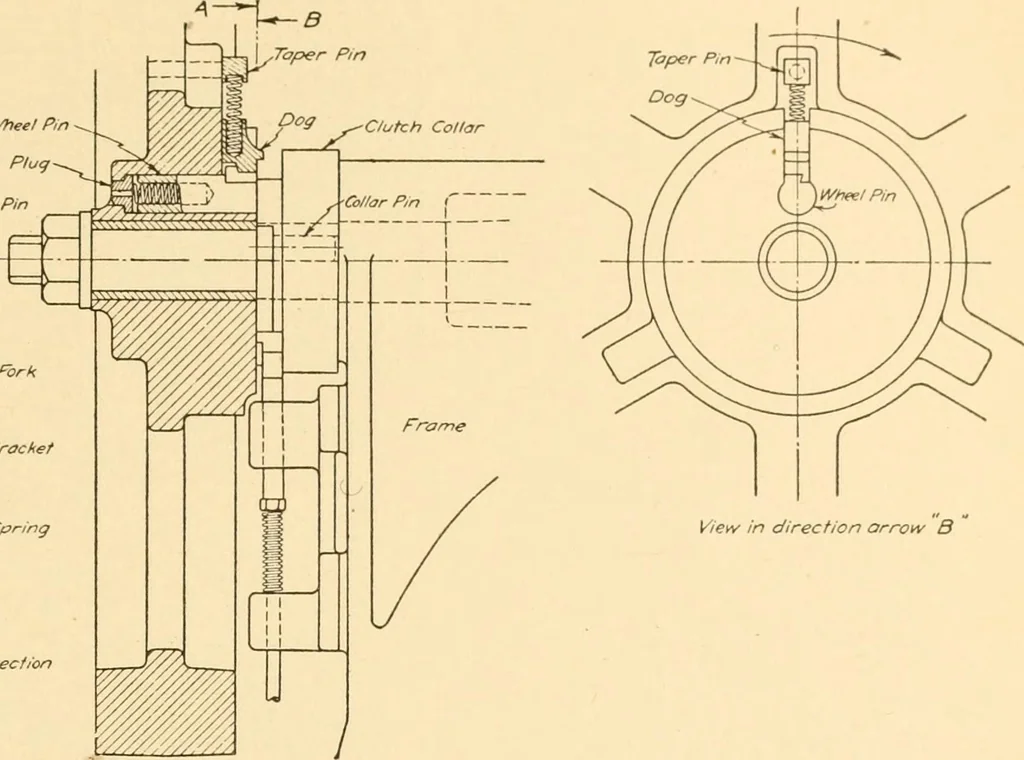

Latch Bracket Lj*ch Spring pf- rk CorjnecfionView in direction of cjrrotv A … View in direction arrow B Fig. 335. Clutch Assembly. AMMONIA PUMP END 208. A pump for ammonia must be constructed entirely of iron or steel. Theoperation of the water end of an ordinary reciprocating pump should be understoodbefore starting this problem. Fig. 336 shows an ammonia pump cylinder and…
Machinery
Internet Archive · Library of Congress · Public Domain Mark 1.0. Free to use for anything.
