The modern gas tractor, its construction, utility, operation and repair: a practical treatise defining every branch of up-to-date gas tractor engineering, driving and maintenance in a non-technical manner. Considers fully all types of power plants and their components, methods of drive and speed changing mechanisms. Describes design and construction as well as practical application of tractors in the field (1919)
Pagé, Victor Wilfred, 1885-1947 · New York : Scientific American Pub. Co. · leaf 282

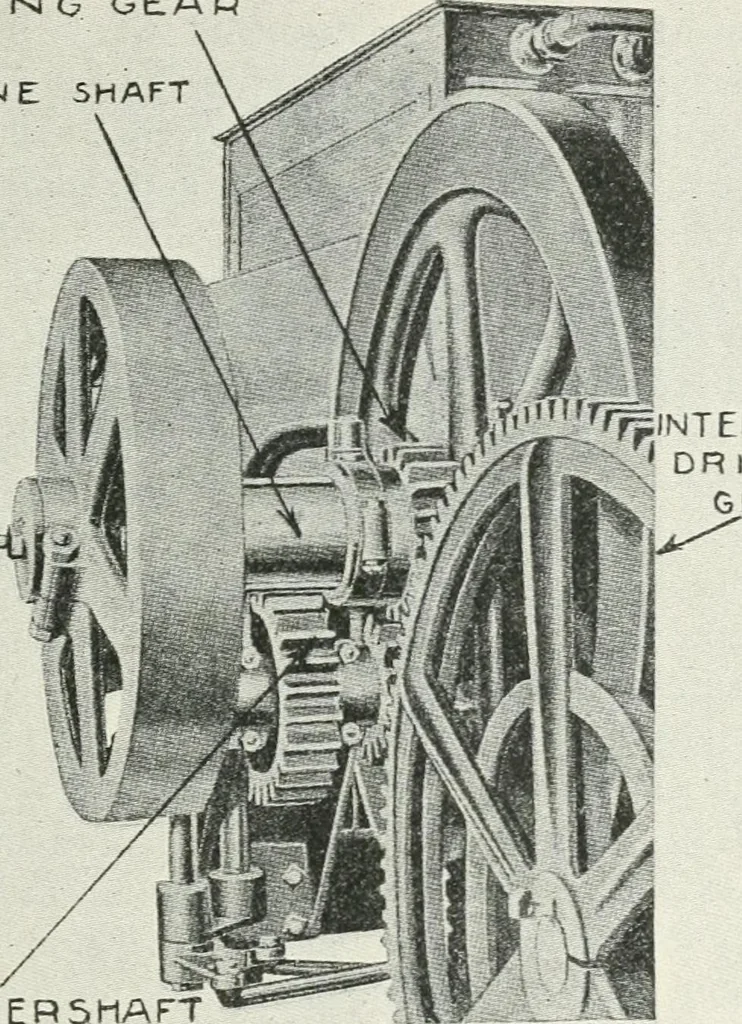

t is out of meshwith either gear A or the reverse sprocket. The shdinggear E which is keyed to the differential drive sleeve Cis then sHd into mesh with the gear F on the countershaft. The drive from the engine to the drive sprocketturns the gear A in the same direction as the enginerevolves. The… … GEAR SAiJi, COUNTERSHAFT Fig. 110.—Sliding Gear of I. H. C. Two Speed Transmissionin Direct Drive Position. same direction and at the same speed as gear B. Thedirection is reversed by the sliding gear E and the differ-ential is driven in the same direction as the transmissiondrive sprocket but at a…
