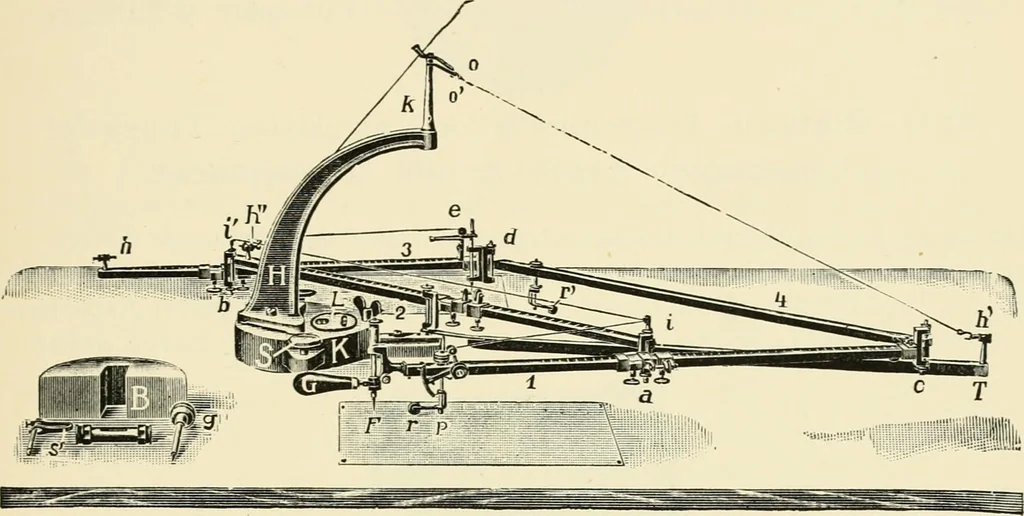

fter ten complete revolutions of the rule the reading will hardly be one minuteout—an accuracy that fully answers all practical requirements. The instru-ment is then ready for use. INSTRUMENTS OF CALCULATION 271 XII. Pantographs. (1) Precision-Pantographs. By A. Ott, Kempten, Bavaria. The… … Fig. i.—Precision Pantograph. for any shrinkage of the paper of old drawings, so often met with. The (pantograph consists of a heavy crane-shaped iron standard consisting ofa bow H, a weight B, and a sole plate K. From the top of the standardare suspended, by a couple of thin wires, four bars, 1,…
