Modern locomotive engineering, with questions and answers .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co · leaf 122

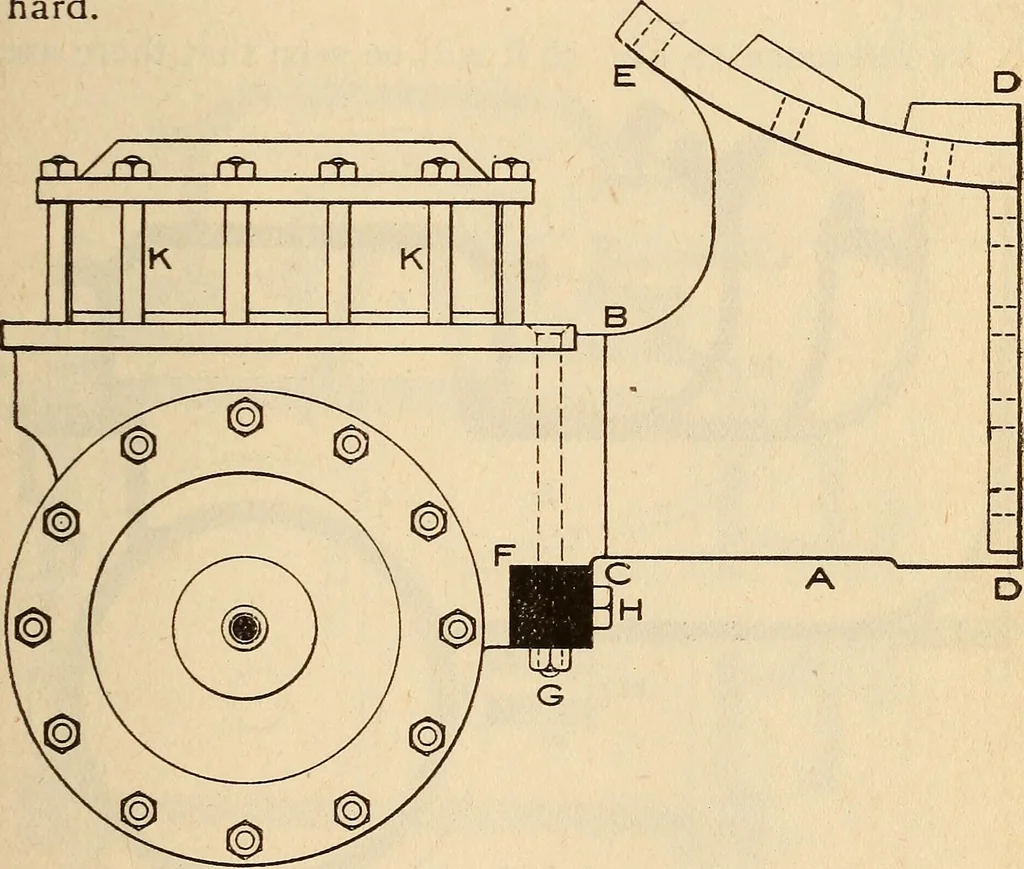

., ofa simple engine. In Fig. 31, Chapter III, is given a sectional viewthrough the smoke-box, saddle plate and cylindercastings of a simple engine, having a flat or D slide 114 VALVES AND \ALVE GEAR IIS valve. Figs 49 and 50 show respectively a front endview of the cylinder, valve chest and saddle… … Figure 49 Cylinders and valve seats are generally cast togethervith the bed plates or bed castings A A, Figs. 49 and50. Sometimes the bed castings are made separatefrom the cylinders and in one piece, and the cylindersare then bolted to it about at the line B C, Fig. 49.The usual practice, however,…
Locomotives
