Modern locomotive engineering, with questions and answers .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co · leaf 361

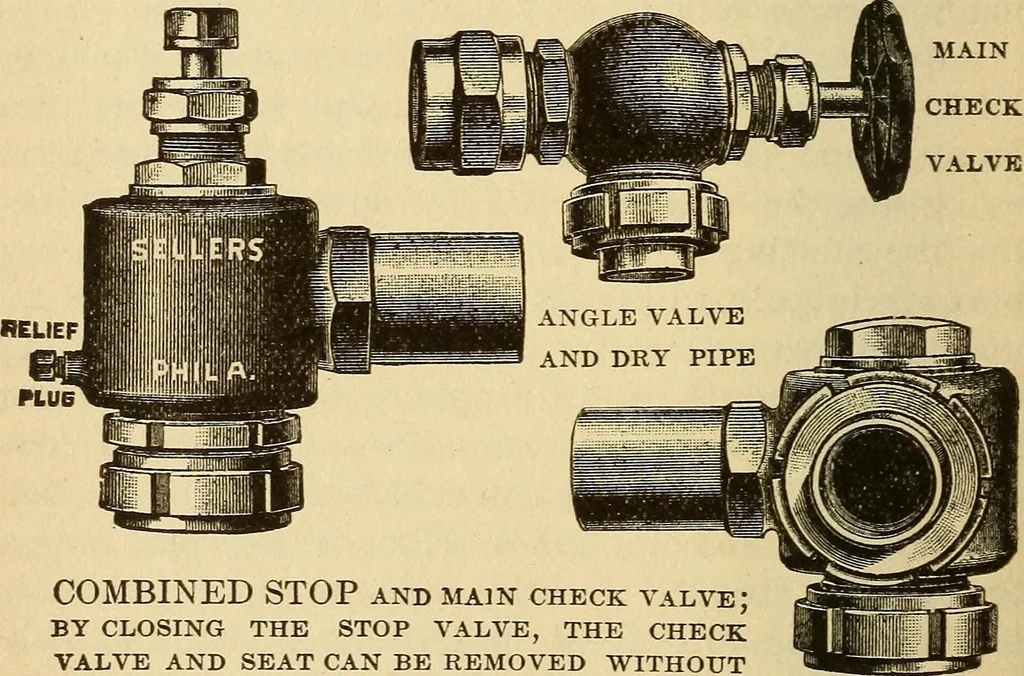

LOCOMOTIVE ENGINEERING way; place a monkey wrench on the guide (22) for theline check (20) and unscrew; in some of the older pat-terns of injector it may be necessary to insert an oldfile or flat piece of iron, or perhaps two pieces in oppo-isite openings; at any rate, it can be removed quiteeasily… … COMBINED STOP and main check valve;by closing the stop valve, the checkvalve and seat can be removed withoutblowing off boiler. screw or flanged. Figure 162 the impediment must be taken out without bruising the surface or bending the tubes. When the parts are replaced, test before recoupling the…
