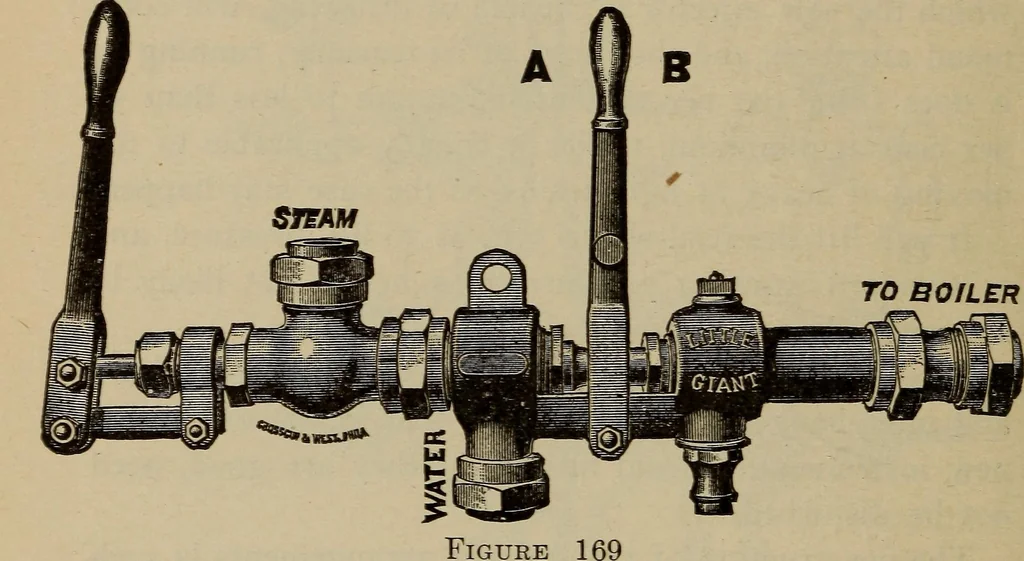

a short distanceto lift the water; when water runs from the overflow,steadily draw back the lever until overflow ceases. 368 LOCOMOTIVE ENGINEERING Do not increase the steam supply after overflow hasceased. Regulate for quantity with water-valve W To stop: Push in the lever. With Screw Motion. To… … Regulate for quantity with water-valve W. To stop: Close steam valve. Note I. To grade injector: Throttle water by valwW; if this is not sufficient, reduce the steam by push-ing in lever handle about iialf-way, and in case of thescrew motion, by screwing in the steam spindle abouthalf-way. 2. To…
