Modern locomotive engineering, with questions and answers .. (1913)
Swingle, Calvin Franklin, 1846- [from old catalog] · Chicago, F. J. Drake & co · leaf 384

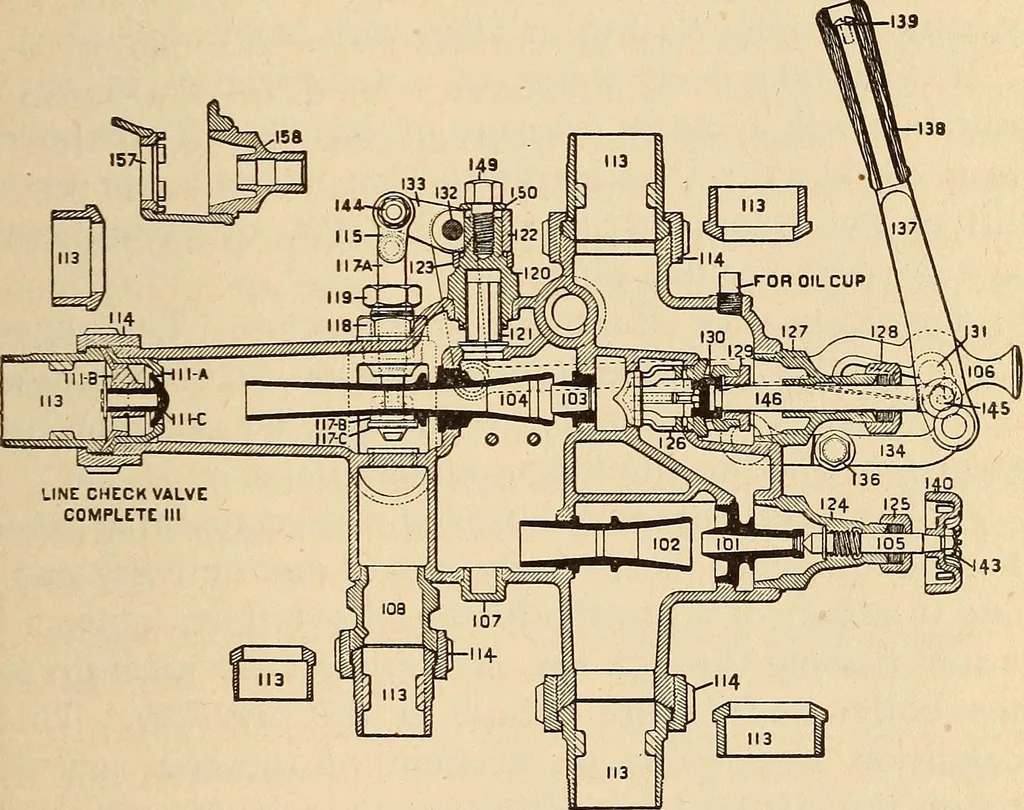

made and usedwas provided with a separate valve for opening andclosing the intermediate overflow in starting, andvalve for opening and closing the steam to the forcer INJECTORS, STEAM GAUGES, ETC. 377 and the final overflow valve. While each was very-simple in construction and the operating of the… … Figure 174The Hancock Inspirator, Sectional View To accomplish this, the Hancock locomotive in-spirator, Fig. 173, operated by a single lever, wasevolved, and is made in different types to suit differentconnections. The present Hancock locomotive inspirator willwork successfully with pressures of…
Locomotives
