Treatise covering operation, defects and remedies of the locomotive, Westinghouse and New York air-brake, also questions and answers to first, second and third year's progressive examinations (1917) MacDonald, J. R. [from old catalog] · [Chicago] The author · leaf 351

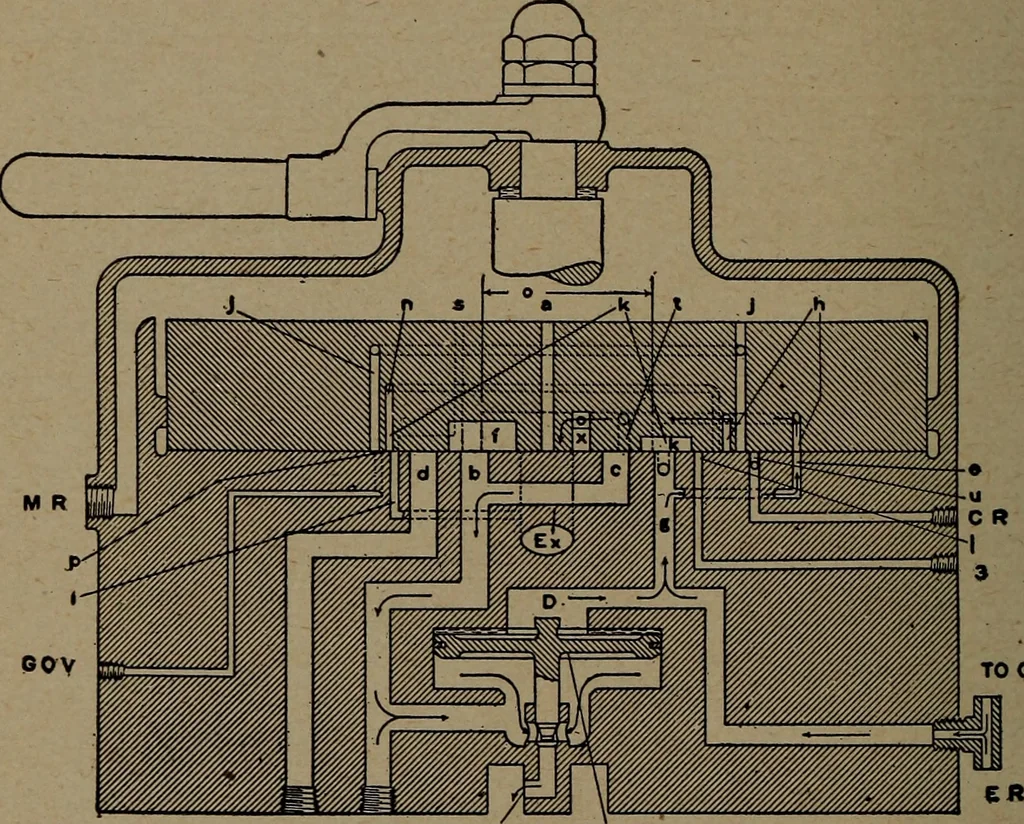

row, throughport C in the seat, exhaust cavity X in the rotary andthe direct exhaust in the seat to the atmosphere, mak-ing a direct and large opening. Air from the equalizingreservoir and chamber D also pass out through port G inthe rotary seat and T in the rotary to the direct exhaust.This sudden… … TO GA06 FV ©P EXHAUST E V 677 Fig. 15. Service Position NEW YORK AIR BRAKE 349 sure is also passing down through, port J and K in therotary, port U in the seat, thence through the control res-ervoir pipe marked CR to the control reservoir and cylinder,building up the pressure which causes a high… Locomotives · Westinghouse air-brake · New York air-brake
