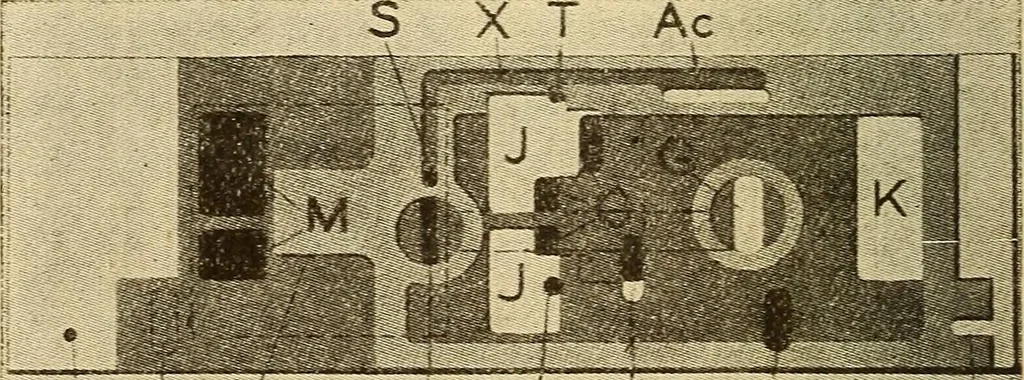

272) to which ports Eand V connect from the main slide valve seat. Port Eis the admission port and is open to receive pressurefrom chamber B when the handle of the brake valve isin Full automatic release and Straight Air applicationposition. Port V is the exhaust port and is used to ex-haust the… … LW. E . A _^ h O P R Fig. 273. RuDiiiiig- Pii^ition. N Port A^ is also used to pass pressure from chamber B tothe straight air brake when the handle is in the Fifthgraduating notch and Emergency position. This is doneso that if there is cylinder leakage or excessive pistontravel, the Straight Air…
