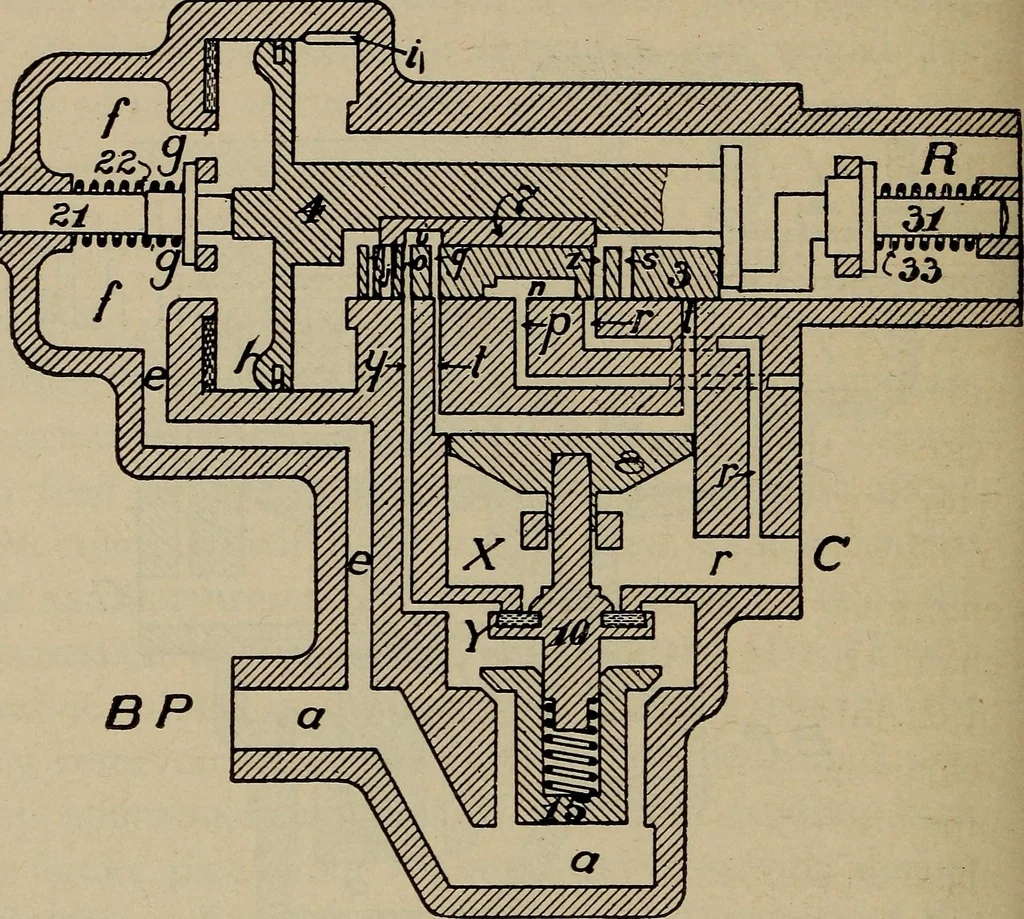

4Lr mm, 12*1 W////////////////\ BP … FIG. 327. QUICK SERVICE POSITION auxiliary reservoir and chamber R becomes enoughgreater than that in chamber h, to overcome the frictionof the piston 4 and graduating valve 7, these two moveto the left until the shoulder on the end of the pistonstem strikes against the right-hand end of the slide…
