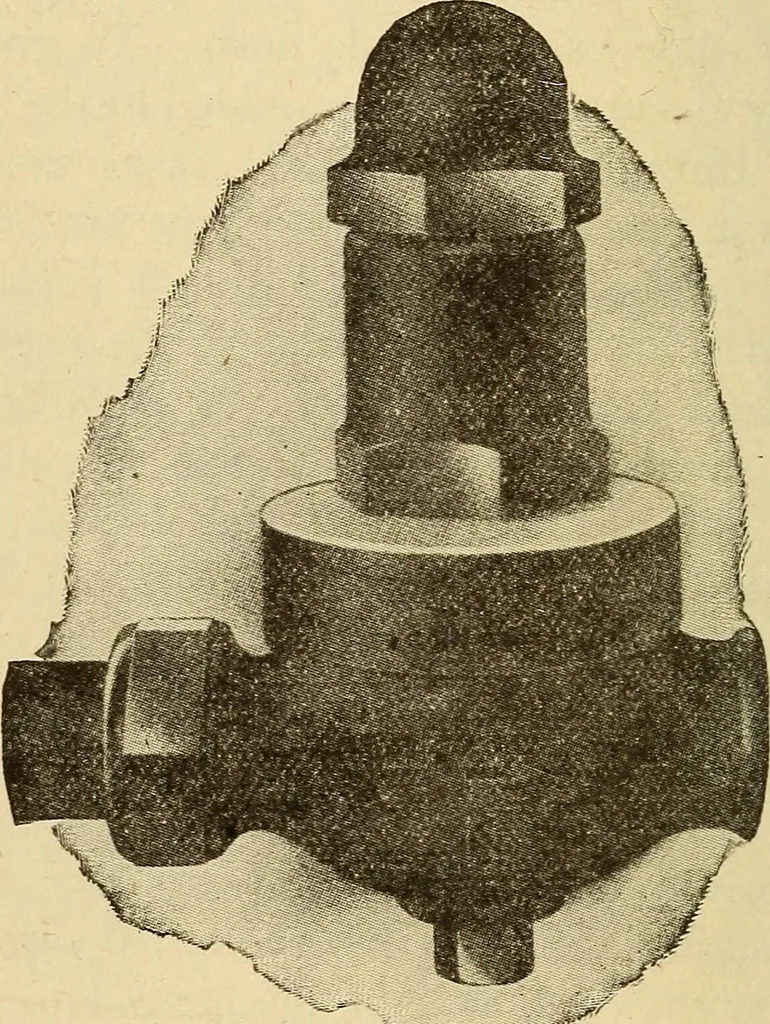

ere through ports S and T, the slide valve remainingclosed. The proper names of parts of the accelerator valveare as follows: PG 24, Piston ring; RV 62, Body;RV 63, Upper cap; RV 64, Lower cap; RV 65, Piston;RV 67, Valve stem; RV 70, Leather seat; RV 74, Slidevalve; QT 231, Spring; EV 656, Slide… … Fig. 289. Straight Air Redueiug Valve. Fig. 289 is a photographic view of the reducing valveand Fig. 290 a section showing the valves, passages, etc. Connection from the brake valve is made to the unionfitting A and by means of the passage C pressure is freeto pass to the feed valve SA 26.…
