Practical instructor and reference book for locomotive firemen and engineers: a practical treatise .. (1916)
Lockhart, Charles F. (Charles Fulton), b. 1872 · New York, The Norman W. Henley publishing co. · leaf 196

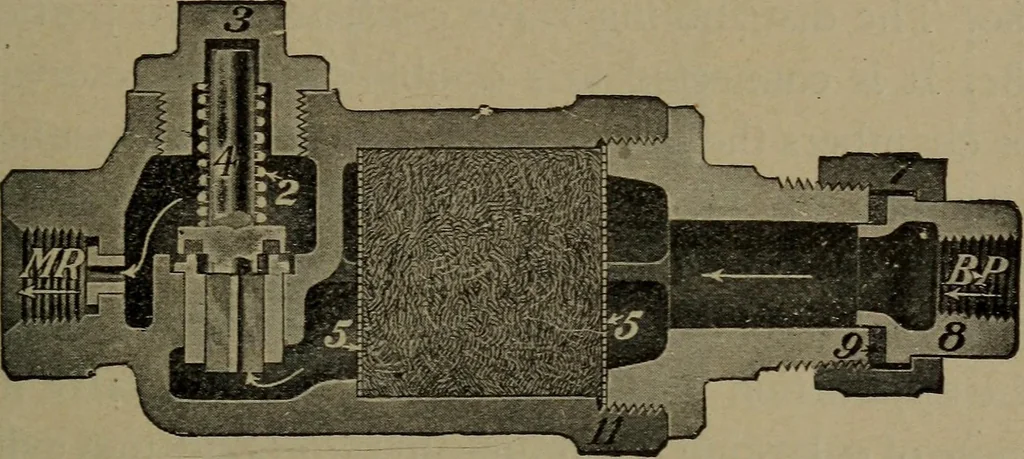

in the piping ofthe E T equipment as shown in Fig. 48. This feature isused on a locomotive in a train when the engine is dead, THE DEAD ENGINE FEATURE 193 or from any reason its air pumps are inoperative. Acombined strainer and check valve with choke fittings areprovided in this pipe, as this… … Fig. 52.—Combined Air Strainer and Check Valve. At all other times the valve is cut out by means of a cut outcock placed in the pipe between the connection to thebrake pipe and the combined strainer and check valve.When it is desired to use this feature, the double headingcock should be closed and…
Locomotives
