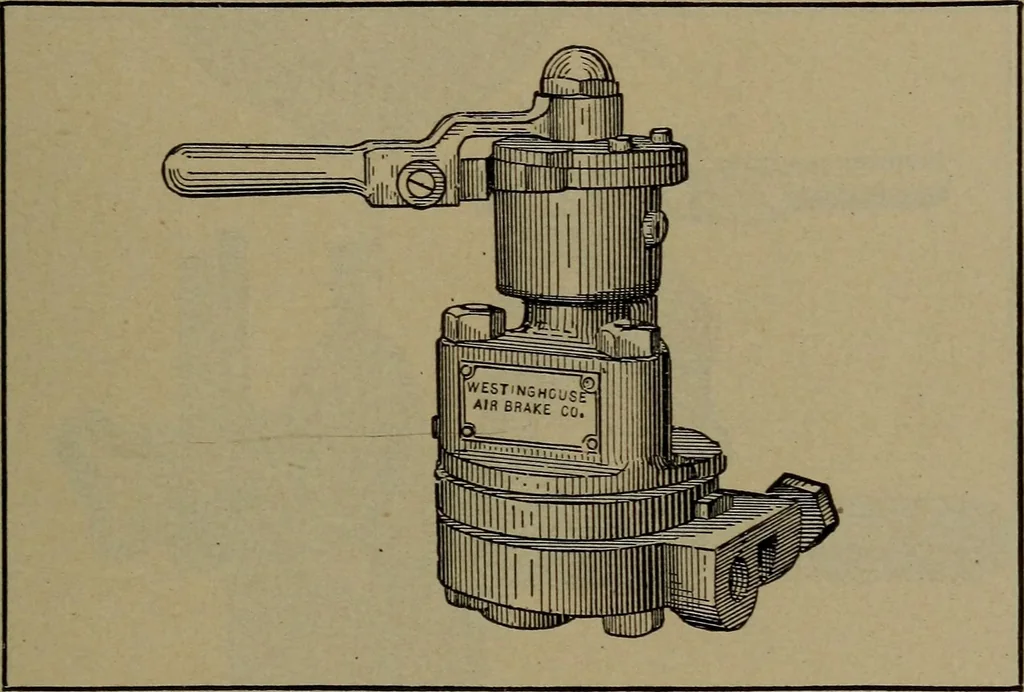

on the left, 1st,release; 2nd, running; 3rd, lap; 4th, slow application;5th, quick application. 652. The names and numbers of the parts of this valve THE S-6 INDEPENDENT BRAKE VALVE 237 (as shown in the illustrations) are as follows:—2, PipeBracket; 3, Rotary Valve Seat; 4, Valve Body; 5,… … Fig. 74.—S-6 Independent Brake Valve Complete. Latch Screw; 18, Latch; 19, Cover Screw; 20, Oil Plug;21, Bolt and Nut; 22, Bracket Stud; 23, Bracket StudNut; 24, Upper Gasket; 25, Lower Gasket; 26, LowerClutch; 27, Return Spring Stop; 28, Cap Screw. 653. The arrangement of ports in the rotary valve…
