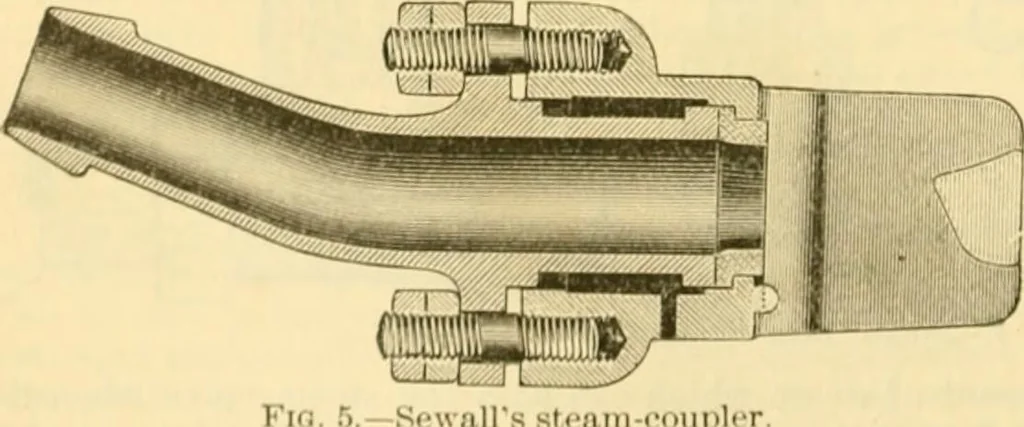

cuts herewithshow its simplicity of construction.The passage for steam is practicallystraight and unobstructed by strain-ers, springs, diafthragm;. gasket-retainers, or iicule angles. .Ml its metallic parts are made ofinalleabhor wrought iron f)r stiel. On the coupler-head are placed a toolh and… … Fin. .5.—.Scwalls stentii-cmi|il CARRIAGES AND WAGONS. 109 relation while uncoupling. The looking features are constructed upon carefully calculatedepicycloidal curves, thereby drawing the gaskets together in a direct line after contact. Thecenter line of pressure exactly coincides with the center…
