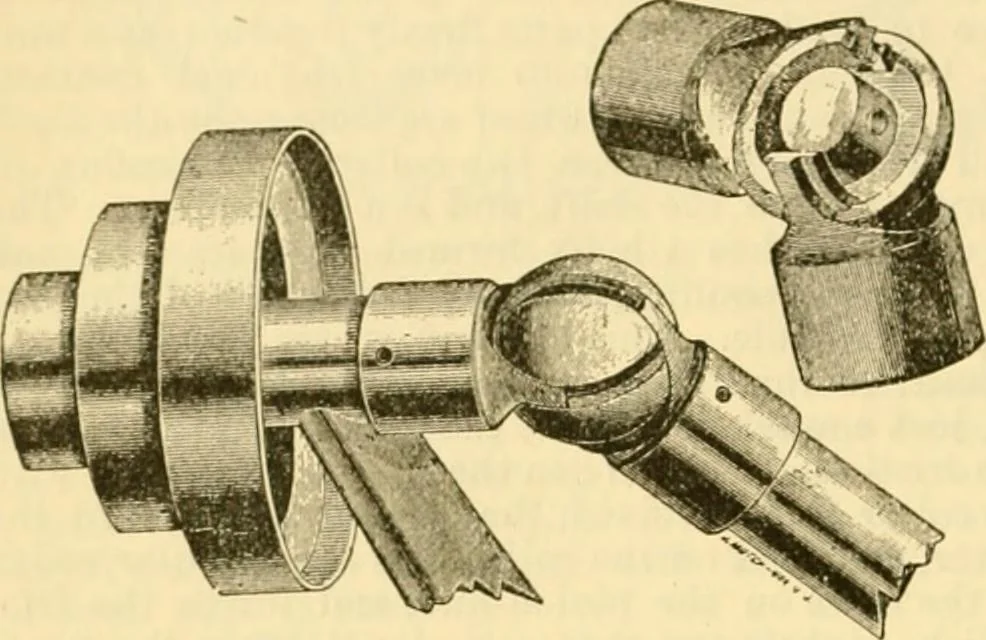

Fio. 6.—Frietional belt-gearing. Fig. 7.—Almonds right-angled coupling. ing-drum, such as is used in pile-drivers and like hoisting machinery. The sectional viewshows its use as a cut-off coupling. The rim of the clutch, as shown, contains a groove withinternal beveled surfaces, each of which is… … Fig. 8.—States Machine Co.s angle-joinc. by the openition of a bent arm-lever, the long arm of which rides upon a cone, which is movedalong the shaft by the shifting lever. Frictional Belt-Gearing.—A new system of transmitting power by belts and pulleys, madeby the Evans Friction Cone Co., of…
