Mechanical movements, powers, devices and appliances (1901)
Hiscox, Gardner Dexter, 1822?-1908 · New York, N. W. Henley & company · leaf 328

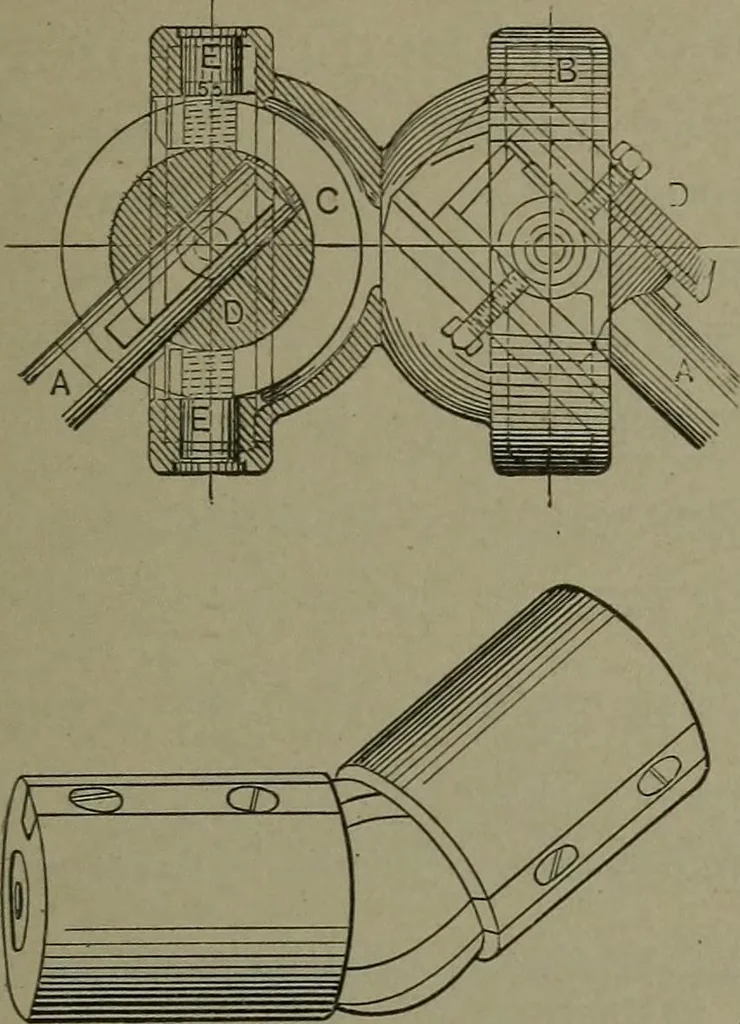

1294. UNIVERSALshafting. Ring gimbal. JOUNT, for 1295. HOOKES UNIVERSAL JOINT.—One shaft end is keyed into a ball with trun-nions, which turn in a ring with trunnions atright angles Avith the ball trunnions. The ringtrunnions turn in the outer shell to which theother shaft is keyed. MILL AND…
Mechanical movements
