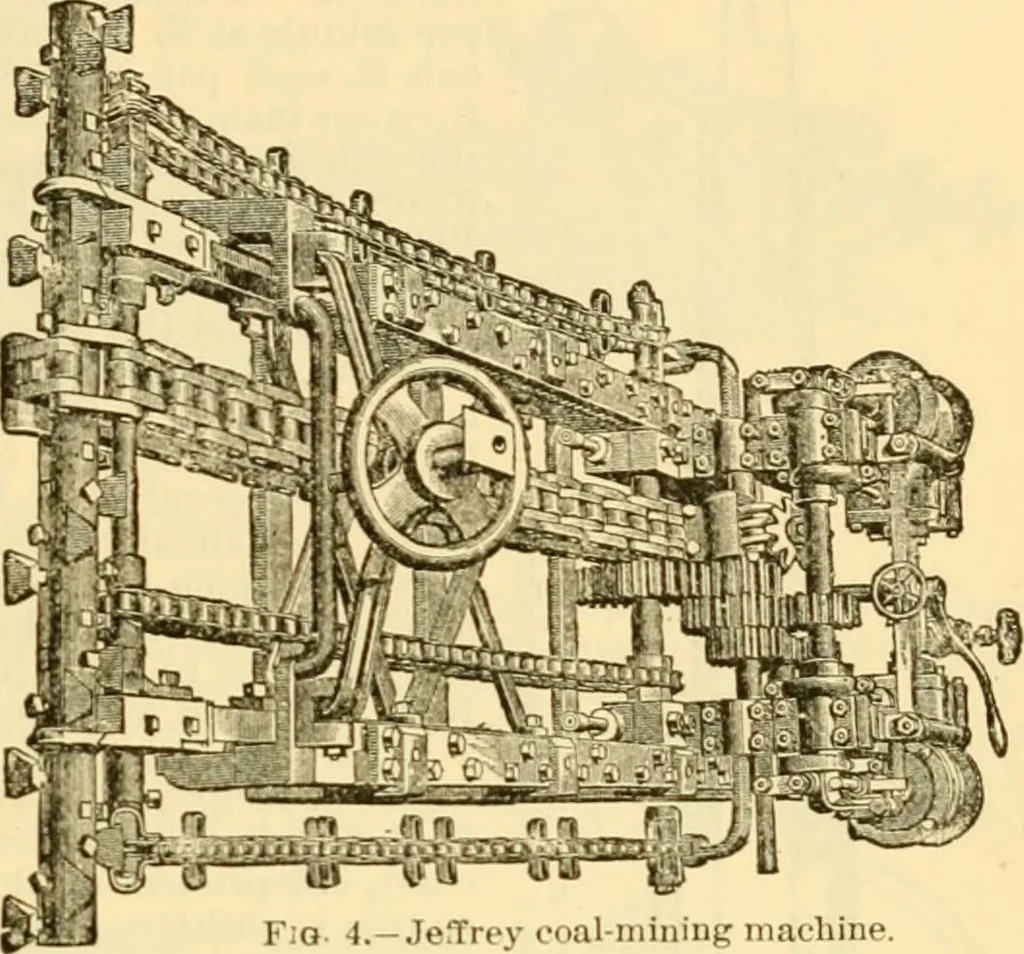

r its entire face. The cutter-bar is revolvedby an endless curved-link steel chain from the driving-shaft, and simultaneously advanced bythe above mechanism into the coal or other material, to be undercut to the desired depth.The feed is thrown on and off l)y means of a lever. The cut under the… … FiQ- 4.—JelTiey coal-iiiiiiing inacbine.
