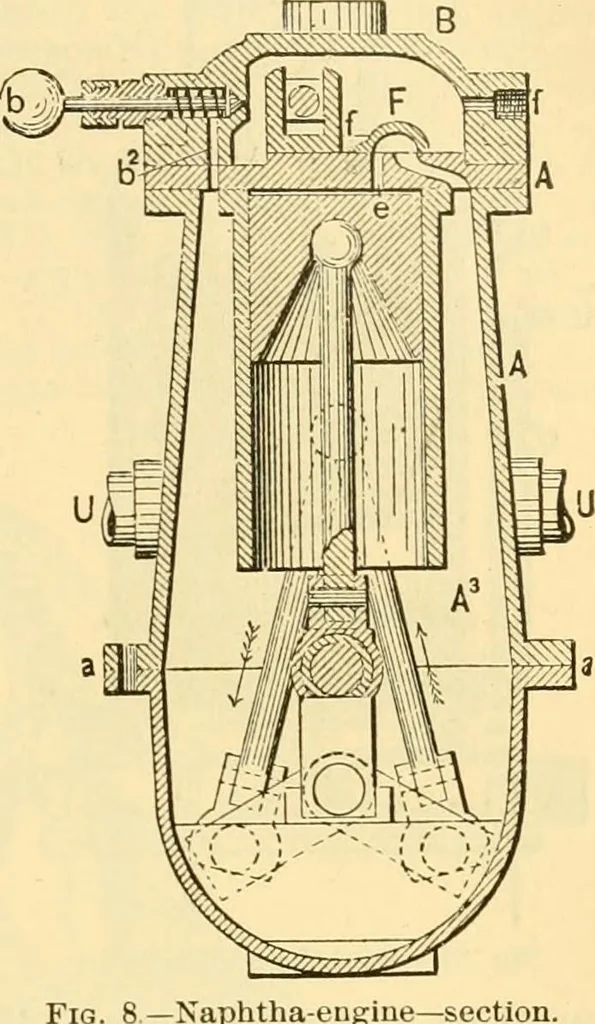

ilu. r.—Naijlitliu-engiiie and boiler. ENGINES, GAS AND OIL. 271 … Naphtha-engiue—section. The slide-valves F (Pig. 8) are each provided with two parallel upright lugs, forming aguide-jaw, in which is fitted a square slide-block bored through horizontally to receive thecorresponding crank-pin of the valve shaft D. The in-duction opening of the valve is marked /,…
