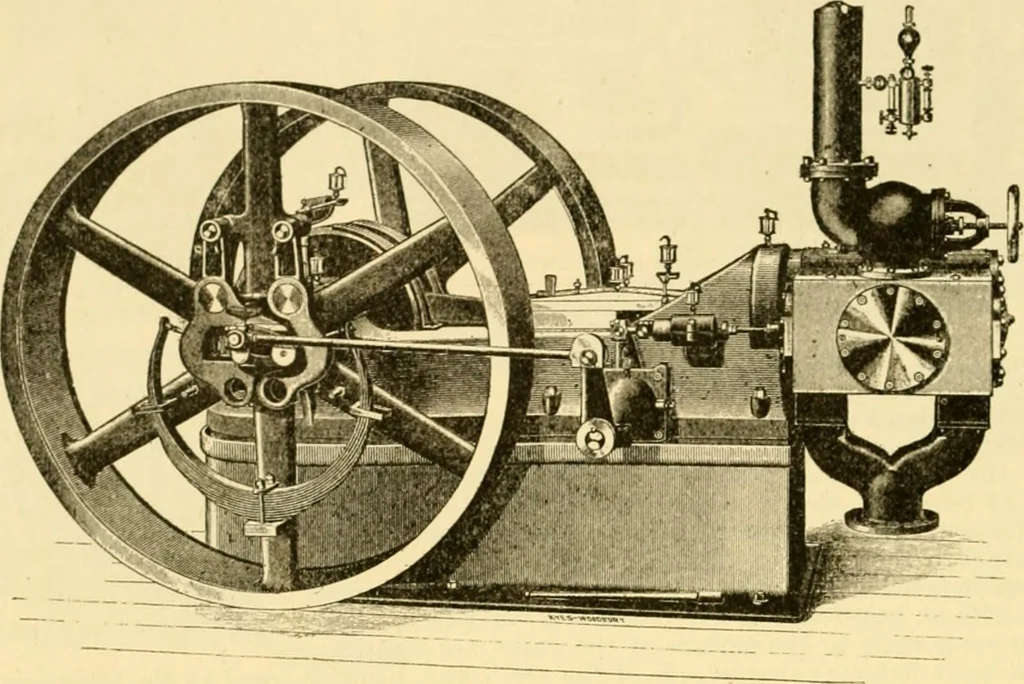

ews provided for that ])urpose. The main caps can beremoved entirely without disturbing the cheek-pieces or wedges, and the latter can then beremoved without disturbing the shaft, exjwsing over one half of the circumference of thejournal. The cross-head is of the locomotive type and is made of one… … Fig. 31.—The Mcintosh and Seymour engine. The valve-seat is so constructed that it can be taken up to compensate for its own wear andthat of the valve. This seat consists of a ring, or rather two rings, made in one piece andconnected by several bridges across the port-opening wliich the space…
