Modern mechanism, exhibiting the latest progress in machines, motors, and the transmission of power, being a supplementary volume to Appletons' cyclopaedia of applied mechanics (1892)
Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 341

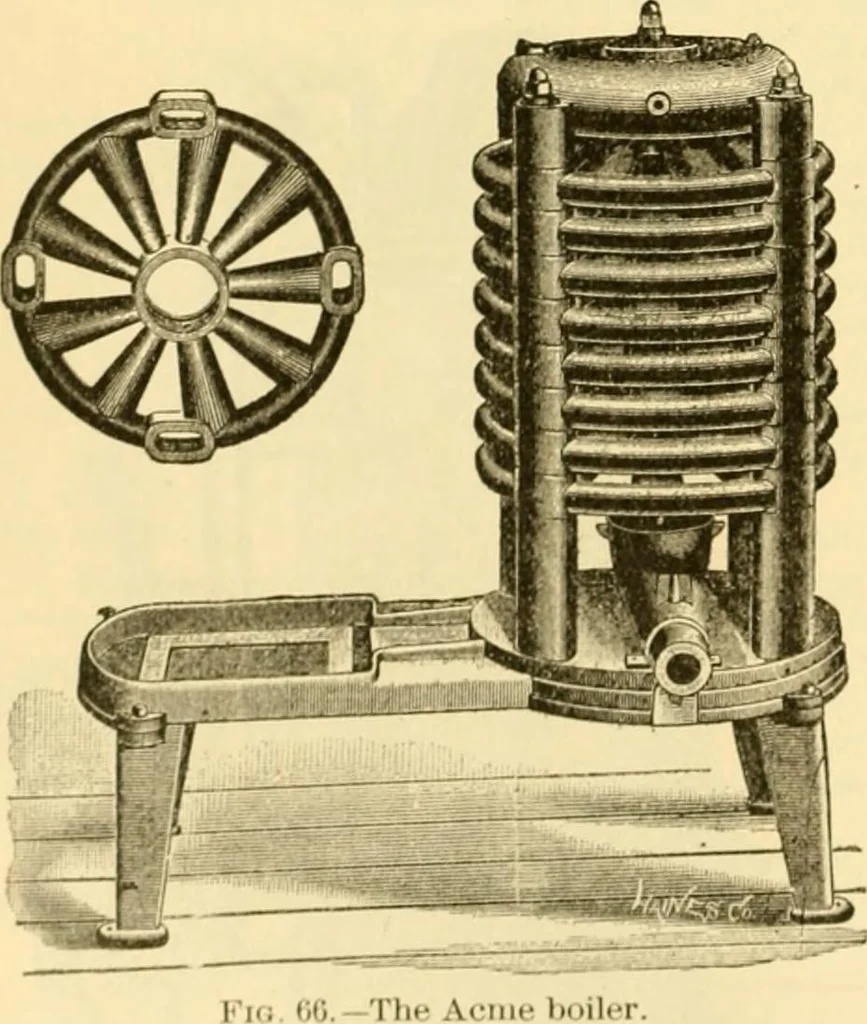

ve located on the oil-pipe, that shuts off the oilwhen steam is shut off from the atomizer, either l)y hand or the action of the fire-regulator. ITic Shipmnn Engiiic and Bailer, made by tlie .Shipman iMigine Co., Boston, is shown inFig. 67. A sectional view of the engine and a side view of the… … (>G. —The Acme boiler. ENGINES, STEAM, STATIONAEY EECIPROCATING. 331 where a moderate amount of power is required. It is automatic, so that, when once steam hasbeen generated in the boiler, ^practically no further attention is required beyond that of open-
Mechanical engineering
