Modern mechanism, exhibiting the latest progress in machines, motors, and the transmission of power, being a supplementary volume to Appletons' cyclopaedia of applied mechanics (1892)
Benjamin, Park, 1849-1922 · New York, D. Appleton · leaf 348

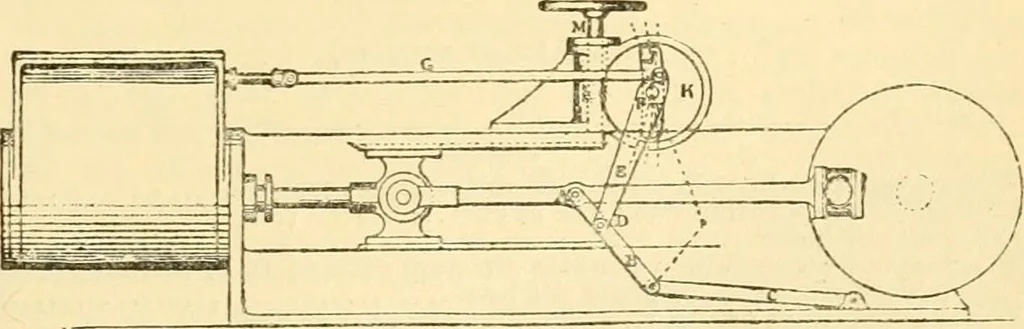

ile the lower end is joined to the radius-rod C, which compels B to move in a vertical plane. To a point D in the link B is jointedthe end of the long arm of a lever E F, of which the end of the small arm works the valve-rod G, and the fulcrum F is attached to a block which slides in the curved… … Fig. 78. 328 ENGINES, STEAM, STATIONARY RECIPROCATING. AJB^A The disk can be made to rotate through an arc by means of the worm and wheel shown. Thus the slot can be inclined to either side of the vertical. The slot allows the fulcrum of the lever to move up anddown with the motion oftlie point A…
Mechanical engineering
Internet Archive · Boston Library Consortium · Public Domain Mark 1.0. Free to use for anything.
