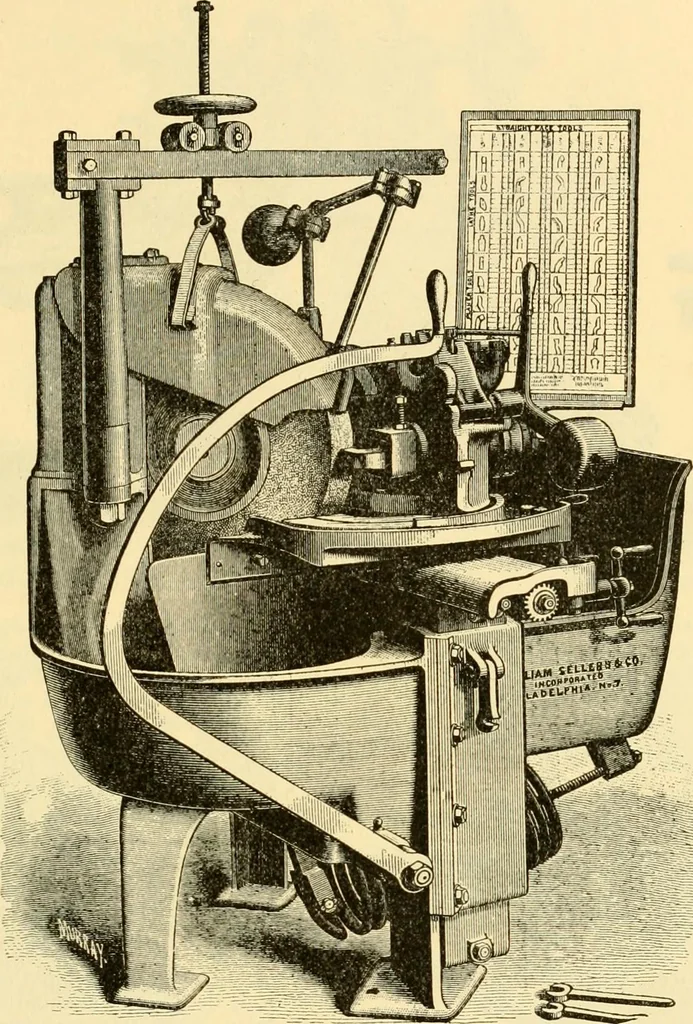

ces of thewheel but is formed so that in the section the grinding surfaces will form a V containing anano-leof 90 With this shape of stone a vertical surface perpendicular to the axis of thestone can be giound bv moving horizontally the chuck with tool toward the center of thewheel • then without… … Fig 2.—Tool-grinding machine. Lappmg-Machme.—This is a grinding device consisting of a lead or other soft metalsurface, on which emery or oil is used. The machine shown in Fig. 3 is made by the Iratt &Whitney Co., for grinding thin, flat pieces that can not well be clamped for milling…
