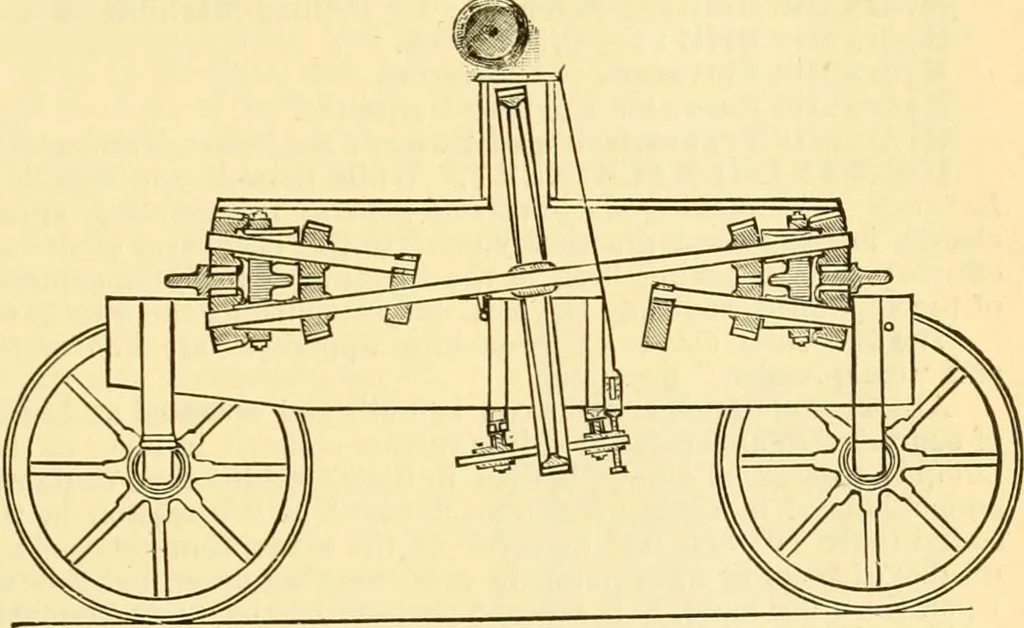

ique shaft. On thisshaft is fixed the largespur-gear that engagesthe pinion of the tum-bling-rod, or knuckle-joint line-shaft. A pulleyon this shaft (not shownin the cut) belts direct tothe thrasher, or any otherstationary farm machine.Fig. 3 shows the mannerof installing the appara-tus for… … Fig. 2.—Horse-power. Section per min. Figr4 Ts the Packer upright horse-power. The position of the line-shaft aloft hasobvious advantages, but at some sacrifice of firmness, and this device is often preferred for
