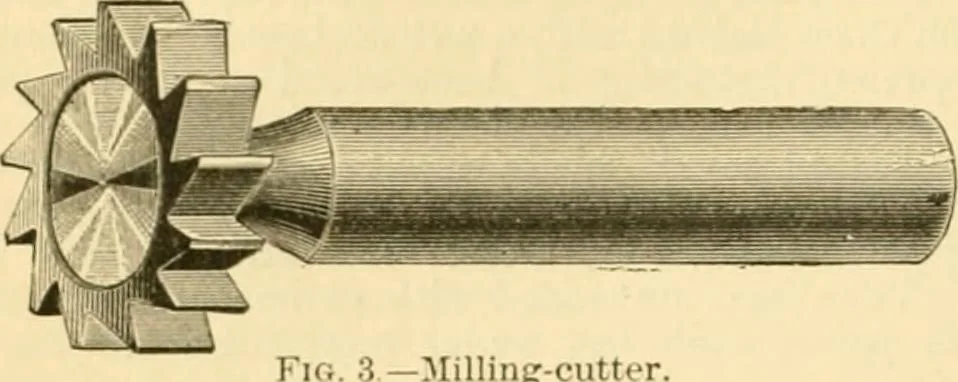

456 KEY-SEAT CUTTERS. way in the hub it is designed to hold in position. The operation of cutting the key-seat issimple, and docs not require skilled labor. Where a long key or feather is required, two or more keys are in- … SIZE OF ! KEYS AND CITTERSCORRESPOND. Shearingstrengthof keys verted, in the man-ner shown in Fig.2. Owing to itspeculiar shape, thekey may be sliglit-ly inclined, so thatit will serve tu sup-port the pullev on•i-Milling-cutter. ^ vertical shaft, provided the key-scat in the hub of the pulley is…
