Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary (1917)

Hiscox, Gardner Dexter, 1822?-1908 · New York : The Norman W. Henley publishing co. · leaf 334

An illustration from Mechanical movements, powers and devices; a treatise describing mechanical movements and devices used in construcive and operative mechinery and the mechanical arts, being practically a mechanical dictionary, 1917, leaf 334

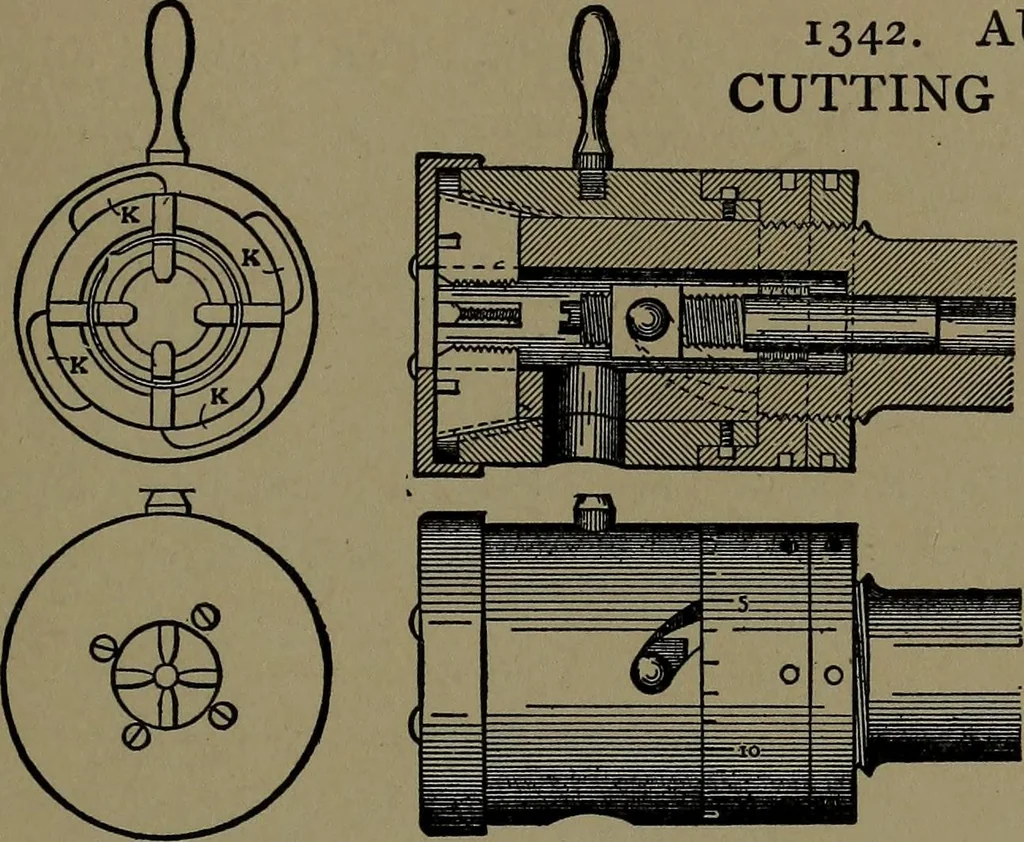

1341. WABBLE SAW, for cutting dovetaif andrabbet grooves. MILL AND FACTORY APPLIANCES. 3*7 … 1342. AUTOMATIC SCREW-CUTTING DIK — The outsideshell is movable on theinner shell, which holdsthe cutters in slots. By-throwing the handleover, the cutters are re-leased from the screw.The centre pin, nut, andslot pin is the automaticrelease by contact withthe screw, which pushesback the slot pin…
