Textile raw materials and their conversion into yarns : (the study of the raw materials and the technology of the spinning process) a text-book for textile, trade and higher technical schools, as also for self-instruction ; based upon the ordinary syllabus and curriculum of the Imperial and Royal Austrian weaving schools (1901)
Zipser, Julius, Salter, Charles · London : Scott, Greenwood · leaf 30

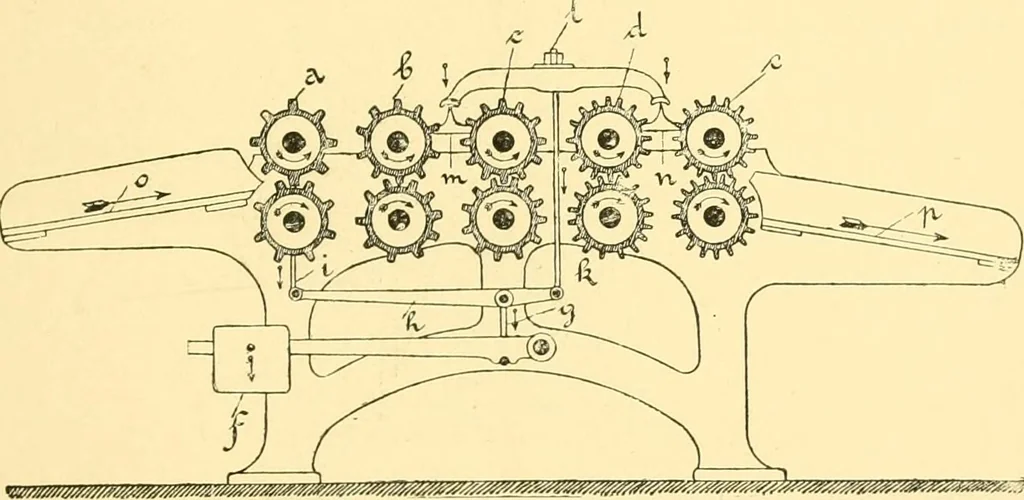

making only 18 revolutions per minute. The upperrollers are weighted by the rod and lever combination,/, <(, h,i, k, /, 111. The retted flax is fed to the machine by the feedtable, (\ and the broken stalks are delivered to the table, n. The waste product, in the form of small, woody… … Fig. 8. — Flax-breaking Machine (section) from injury. The appliances used consist (see Fig. 9) of a pairof quadrangular plates, a, h, the inner sides of which are shodwith twelve rows of spikes and needles, so arranged that theneedles on one side pass between those on the other andpierce the tress…
