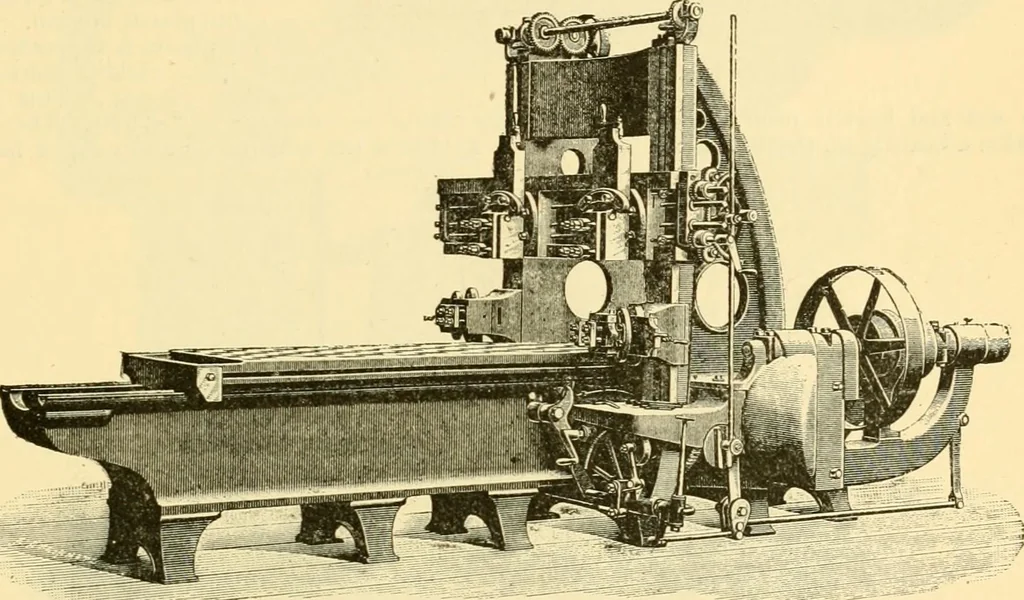

ary angle, while another on the pulley shaft gears with astraight-toothed wheel on the axis of the first pinion. The angles of the teeth of thepinions are such that the pulley shaft lies parallel with the table. By means of thissystem of gearing motion is communicated to the table without shock or… … Fig. 1.—The Sellers plauer. to reversal at high speed is kept as light as possible. The pulleys run always in the samedirection, the reversal being effected by a clutch between them, which engages alternately-with each. The table, the pinion shaft, and the clutch shaft are the parts which…
