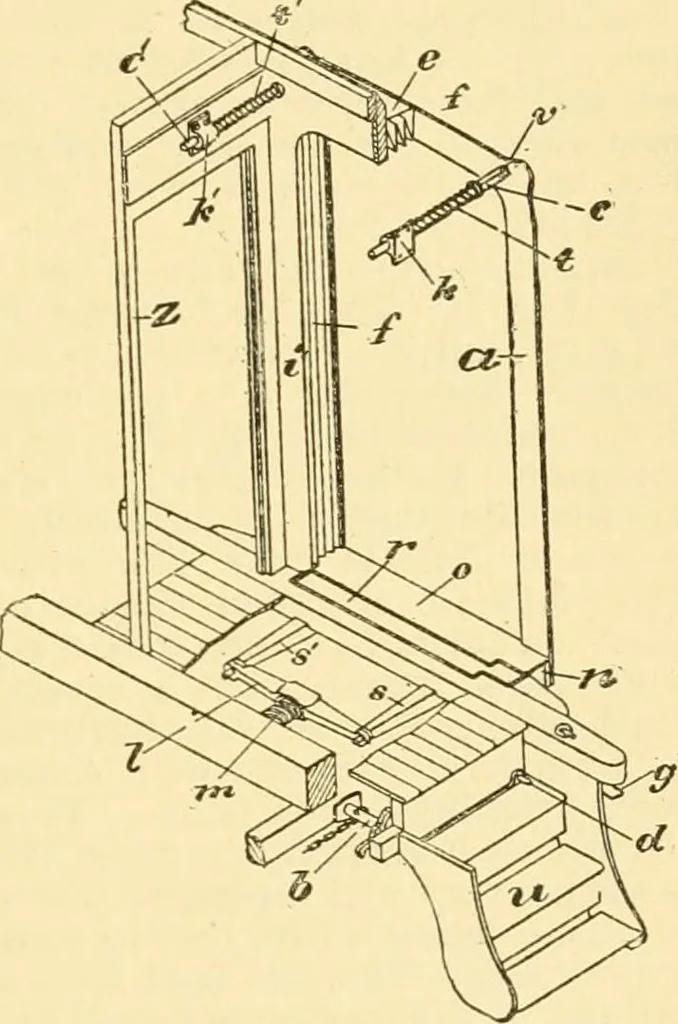

ng centrally and longitudinally through ihe car.These rols. c c, have the same motions as the rods, s s, below the platform, and as they arepivoted to the arch-plate, the latter is so supported at top that its top can move and isrestrained in the same way as the foot-plate, the buffer-plate, and… … Fig. 2.—Pnllman vestibule construction. 716 EAILROAD CARS. Fig. 5 shows the exterior of the end of the car and the canvas portion of the vestibule,as well as the door aiTanj^ements. The general features of this vestibule are as follows: There is a face-plate which is carriedoutward and inward at…
