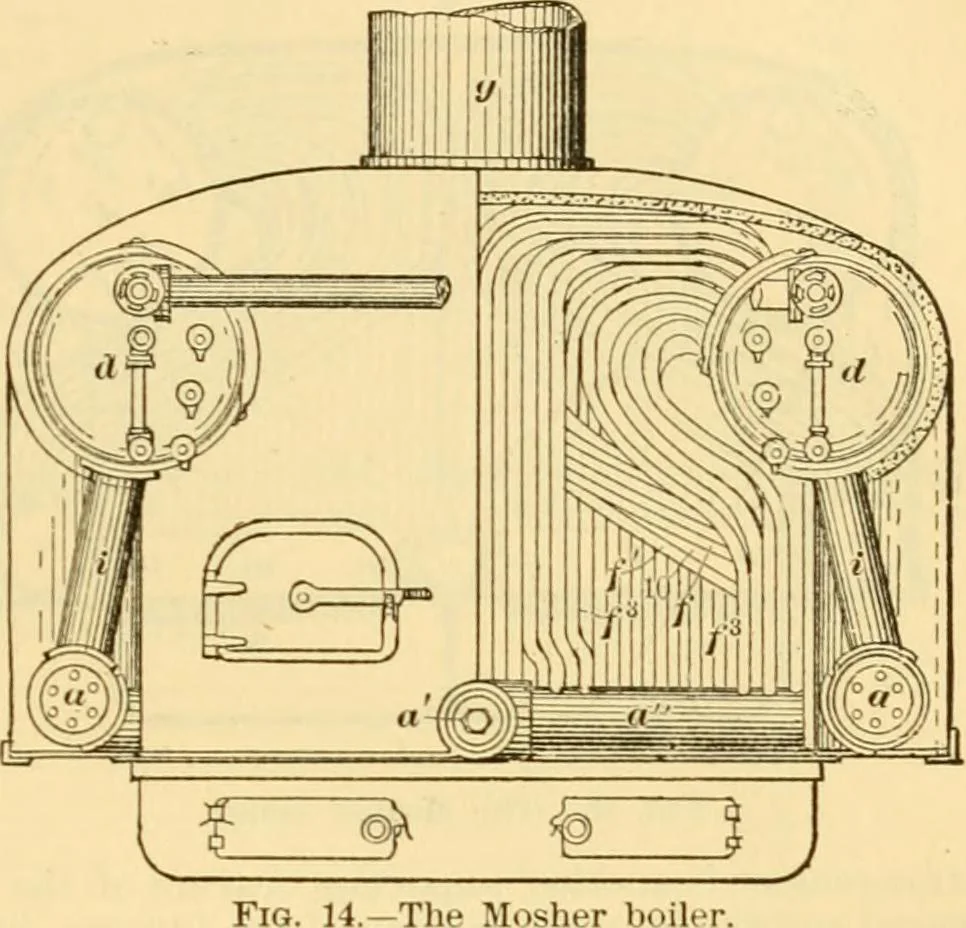

ed byMr. C. I). Mosher for the fast steam-launch Norwood, owned by N. Ij. Munro. of New Yorkcity. It has several novel features. For tiie power the boiler has to furnish, it occujues buta very small spa<e, and its ceuttT of gravity is very low. It has 20 s((. ft. of grate surface, aiulabout… … The Mosher boiler. height, 3 ft. 6 in. Fig. 14 represents an end elevation of the boiler; a portion of the easingis removed to show the interior. Fig. 15 represents a horizontal section taken on line 2, 2,F\^. 16. Fig. 16 represents a transverse section on line 3, 3, Fig. 14. Fig. 16 represents…
