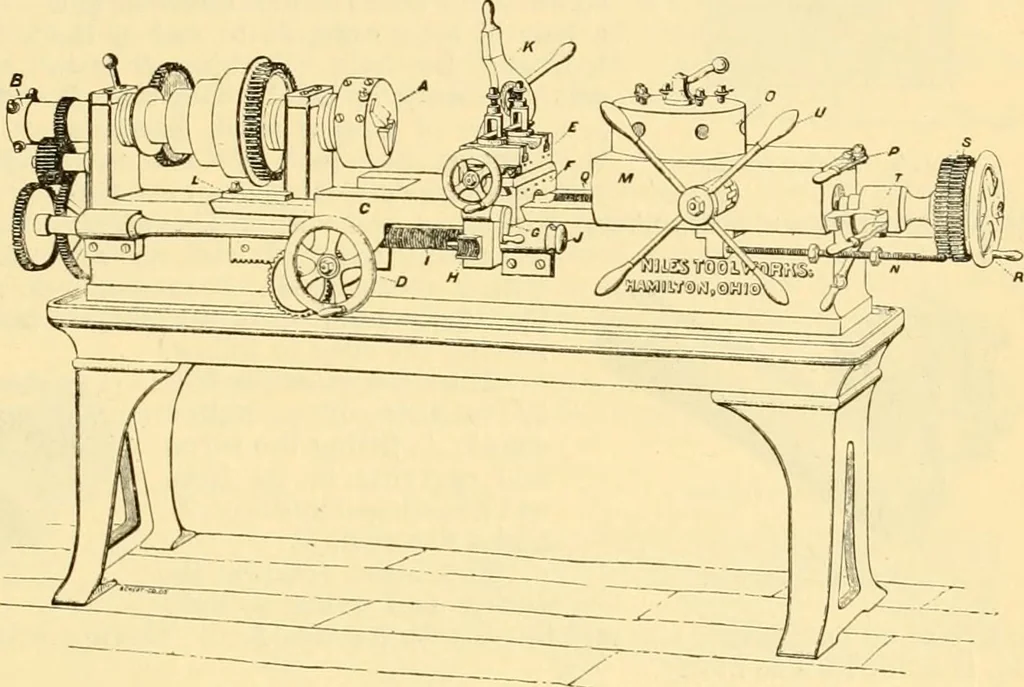

secured by thelock lever, P. The turret slide is moved quickly by hand, by means of the capstan levers, JJ, which byan in-and-out motion also serve to lock the turret at any point. The turret slide is fed inheavy work by the hand wheel, R, on its tail screw. This tail screw carries, inside the… … Fig. 2.—Screw machiue. 783 SCREW MACHINES. Turret Tools.—The different forms of tools used in tlie turret on ordinary shop work areillustrated in Pigs. 3 to 9. The end gauge shown in Fig. 4 is simply a hollow shank, .1. fitting the turret, and a gaugerod, B, fitting the shank. The shankmay be set…
