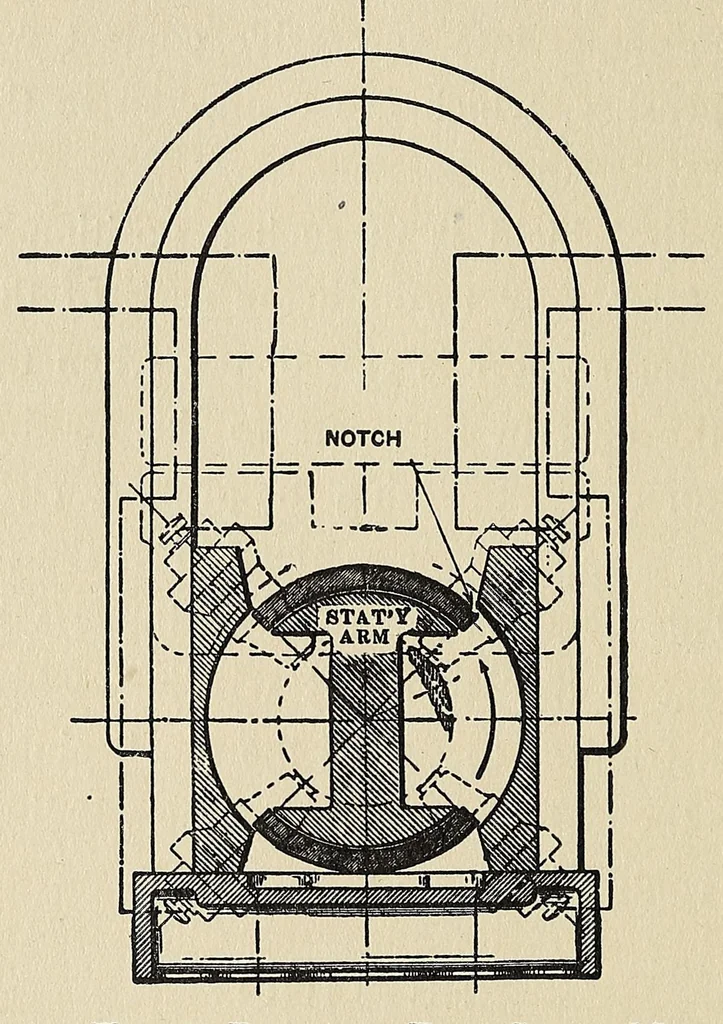

314 APPENDIX of a shallow aluminum box, which is held in posi¬ tion by a single screw with a large head, and when this is removed the stationary armature and revolv¬ ing shield will be exposed to view. One of the ! … Fig. 15. — Timing Diagram, Four-Spark Magneto. pistons must then be brought into the position it will take with a fully advanced spark, and the shield then revolved until it is in the position shown in Fig. 15. The nut securing the gear to the shaft
