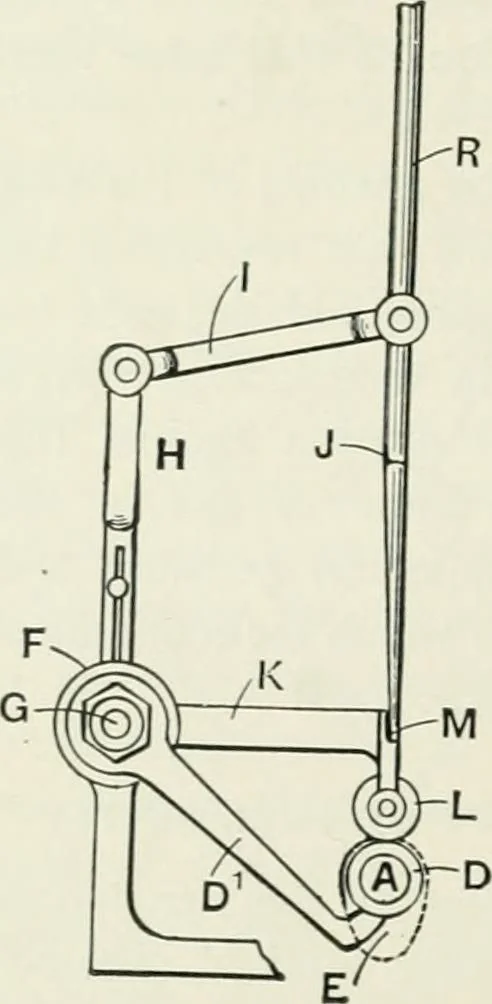

erefore, when it is pusheddownwards by cam d 3 it forces the link i forward, which inturn pushes the plunger r, causing the digger j to miss thestep M, with the result that the e.xhaust valve does not open. The working of the governor will be readily grasped onreference to fig. 17, where b is a… … Fig. 16 THE PETROL ENGINE XT] which shdes on the half-time shaft a. p is a spring betweenthe weights o o, which offers a check on the tendency of thelatter to fly outwards. As the pace of the motor increases, thecentrifugal force developed overcomes the resistance of thespring p, the weights move…
