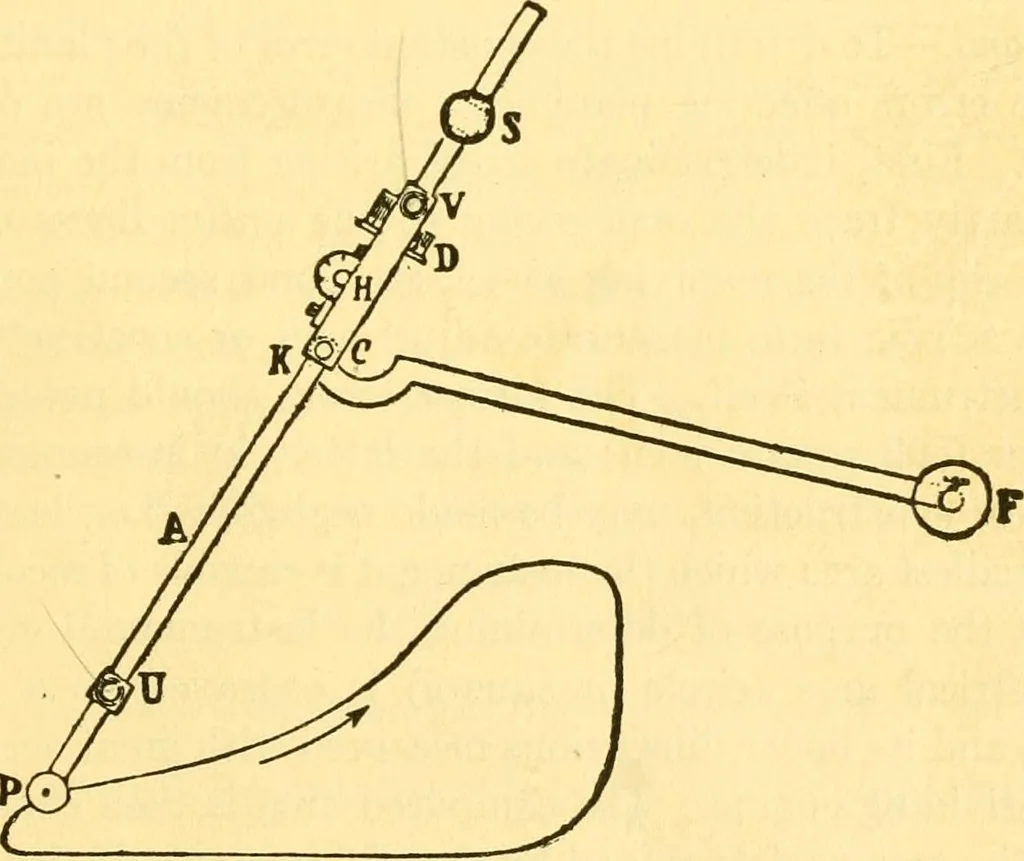

echanism along the arm until the indexon it nearly coincides with the division marked. ClampS and set exactly on the division by means of the fine adjust-ment screw below S. Place the planimeter on the board withreference to the area to be measured as shown in Fig. 4, andsee that the tracing point… … Fig. 4. 14 PHYSICAL LABORATORY EXPERIMENTS hole on the circumference as a starting point and moye thetracer until it is exactly at this point. The recording wheelmay now be adjusted so as to read exactly zero or, better,the reading may be taken on G and D as it stands. With Ptrace the circumference…
